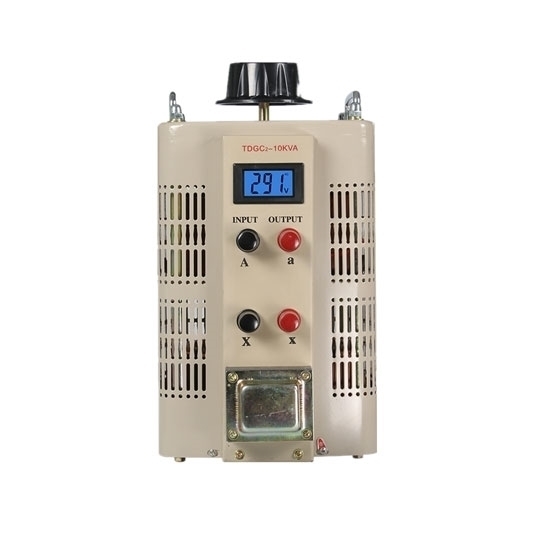

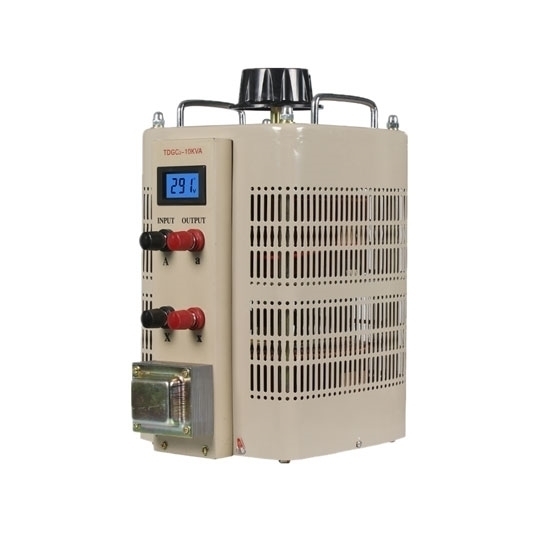

30 KVA Single Phase Variac Voltage Regulator

0 reviews • Write a review

from

$3,365.19

Ex Tax: $3,365.19

Stock: In Stock
Model: RDDLZ-VVR-30K
Weight: 1.00
SKU: RDDLZ-VVR-30K

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

High quality variac transformer capacity 30 kVA, frequncy 50Hz, single phase variac voltage regulator, manufacturer direct sales.

Note: Support the split phase (L1,L2+N,G), Please contact us.

30 kVA Single Phase Variac Voltage Regulator Features

10 kVA and single phase variac voltage regulator.
96A rated output current and 0-250V rated output voltage, 220V rated input voltage.
Working frequency is 50 Hz.
Widely applied to industries.
Used to realize voltage regulation, temperature control, speed adjustment, light modulation, power control, etc.

30 kVA Single Phase Variac Transformer Specifications

Model		RDDLZ-TDGC2-30K
Phase No		1
Frequency		50/60Hz
Rated Input Voltage		220V
Rated Output Voltage		0-250V
Rated Capacity		30 kVA
Max Output Current		96A
Usage		SVC
Current Type		AC
Type		Contact type regulators
Weight		100 kg
Actual Output Current		(actual output voltage * rated current) / maximum output voltage
Dimension	L	370mm
	W	310mm
	H	1100mm

30 kVA Single Phase Variac Voltage Regulator Detail

Tips:

A voltage controlled power source that can regulate both load and voltage is a voltage regulator. Non-contact voltage regulator, electric voltage regulator, magnetic voltage regulators and coil-shifting voltage regulator are classified according to different electromagnetic principles and structures. The stabilized voltage supply that can stabilize voltage with load is an automatic voltage regulator, it is used to transform unstable distribution voltage when grid voltage and load current are constantly changing. Specially designed voltage regulator and automatic controller are the main components of automatic voltage regulator, which is a device for closed loop control system.
