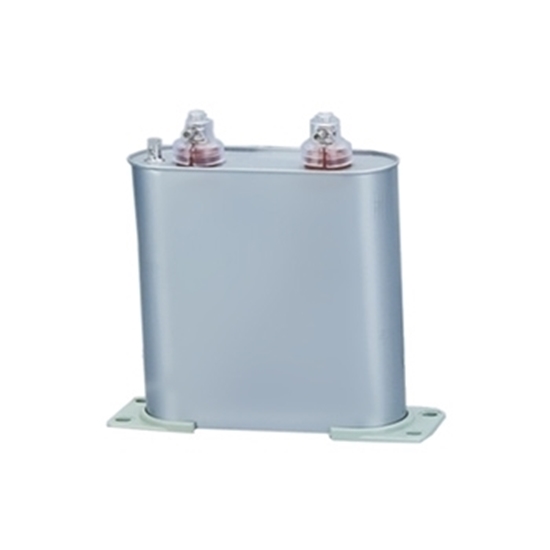

12 Kvar Shunt Capacitor, Single Phase, 400V, Self-healing

0 reviews • Write a review

from

$143.38

Ex Tax: $143.38

Stock: In Stock
Model: RDDLZ-CAP-40012
Weight: 1.00
SKU: RDDLZ-CAP-40012

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

12 kvar Shunt Capacitor Features

It can be used in 50Hz or 60Hz, 400V AC low voltage circuit system.
Small volume, light weight for you easy to install.
Excellent self-healing property: Rapidly self-healing after midum dielectric breakdown by over-voltage or over-current, recovered to normal work.
It is produced strictly in accordance with the National Standard and IEC Standard.
No leaking, no pollution and environment protection.

12 kvar Single Phase Capacitor Specifications

Model	0.4-12-1
Shape	Rectangular
Weight	1.5 Kg
Height	180 mm
Rated Voltage	400V AC
Rated Capacity	12 kvar (238 μF)
Rated Current	30 A
Rated Frequency	50Hz or 60Hz
Capacity Tolerance	-5%~+10%
Outgoing Terminal	M6
Connection	3 line-△ type / 4 line-Y type
Anti Voltage	Between two pole 2.15 times rated voltage is 10s; Between two pole 3 kv please choose highest value 10s; There is noperpetuity puncture and flash over.
Max Permit Over Voltage	1.1 times rated voltage, the high permit over voltage is not more than 8 hours within 24 hours. 1.15 times rated voltage, it is not more than 30 minutes within 24 hours. 1.2 times rated voltage, it is not more than 5 minutes. 1.3 times ratedvoltage, it would not more than 1 minute.
Max Permit Over Current	It is permit that the over current is not more than 1.3 times rated current.
Safety	Self healing, Sheet metal enclosure
Certification	GB/T 12747-2004, IEC60831: 212002

Note: Need more models information of the single phase shunt capacitors, please click here.

12 kvar Shunt Capacitor Dimension (mm)

Tips: Power shunt capacitor working conditions

After the capacitor removes the power supply, it is necessary to ensure that the residual voltage of the capacitor is reduced to 10% of the rated voltage to allow re-input. Usually, this time takes about 200s, so it would choose the power controller which has input and reput lock time function after cut off the power. If choose normally power controller, it must install speediness discharge power equipment. It would not limited which use adopting same electric factor input and chip switch.
