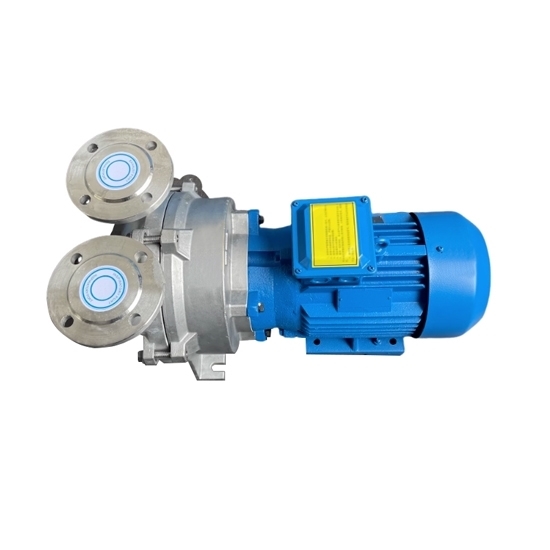

15 HP (11 KW) Water Ring Vacuum Pump

0 reviews • Write a review

from

$4,838.09

Ex Tax: $4,838.09

Stock: In Stock
Model: RDDLZ-WRVP-15
Weight: 1.00
SKU: RDDLZ-WRVP-15

Available Options

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The mechanical seal of 15 hp water ring vacuum pump adopts with high quality material. Water ring type vacuum pump is designed with coaxial direct connection, which saves space and is easy to install. Water ring pump is known for its reliability, durability, and ability to handle wet or harsh gases and vapors without damage.

Features:

Equipped with cavitation protection pipe interface.
Flexible exhaust port design, no over compression.
Designed with coaxial direct connection, which saves space and is easy to install.
Vacuum pump adopts high quality mechanical seal as standard configuration.

Specification:

Model: RDDLZ-2BV5131
Power: 15 hp (11 kW)
Rated Voltage: 380V
Phase: 3 phase
Frequency: 50 Hz
Max Gas Volume: 400 m³/h
Extreme Pressure: 3300 Pa
Noise: 73 dB
Material: stainless steel
Net Weight: 184kg

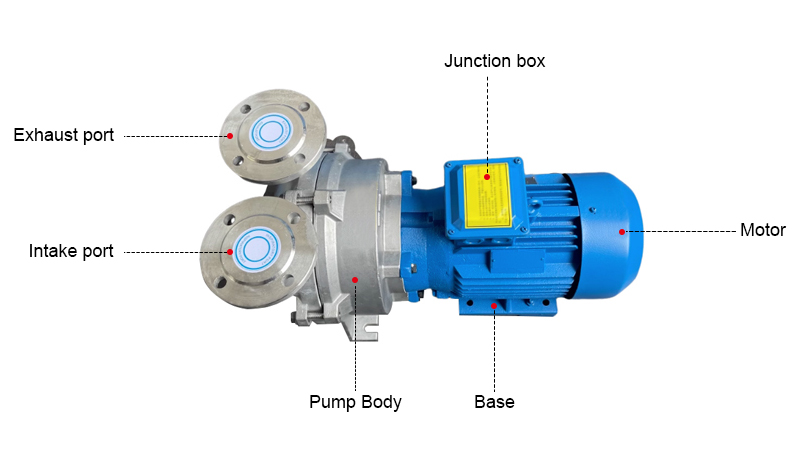

Details:

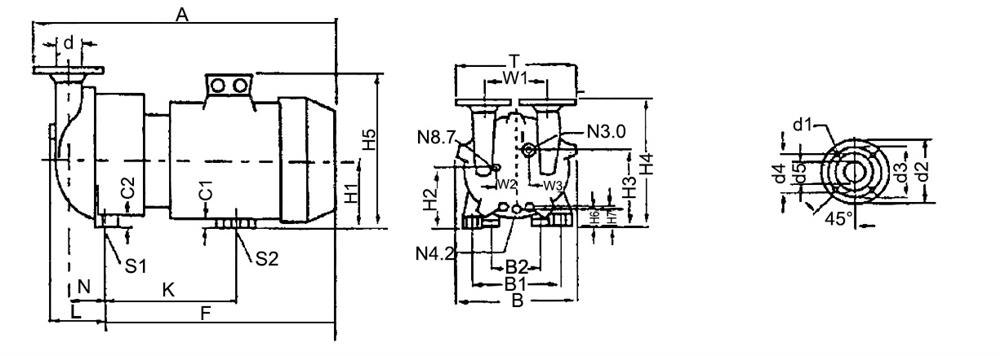

Dimension (Unit: mm)

2BV5-131	A	B	B1	B2	C1	C2	H1
	852	377	300	254	35	30	175
	H2	H3	H4	H5	H6	H7	K
	195	249	420	435	51	75	460
	L	F	N	S1	S2	T	d1
	147	658.5	103	φ12×23	φ14	382	19
	d2	d3	d4	d5	W1	W2	W3
	182	142	113	66.5	200	62.5	32
	N3.0	N4.2	N8.7	/	/	/	/
	G3/4"	G3/8"	G3/8"	/	/	/	/

Application:

Tips: How to Choose Water Ring Vacuum Pump?

Determine the desired vacuum level. The vacuum level required for your application is a critical factor in selecting a water ring vacuum pump. Different pumps have different performance characteristics at different vacuum levels, so it's important to specify the desired vacuum level to ensure that the pump can meet your requirements.
Identify the gas to be pumped. Consider the type of gas or vapor that you will be handling with the vacuum pump. Some water ring vacuum pumps are designed specifically for handling certain gases or vapors, while others are more general-purpose.
Consider the capacity and flow rate. Determine the required capacity or flow rate of the pump based on your application's needs.
