- Stock: In Stock
- Model: RDDLZ-WRVP-20
- Weight: 1.00
- SKU: RDDLZ-WRVP-20

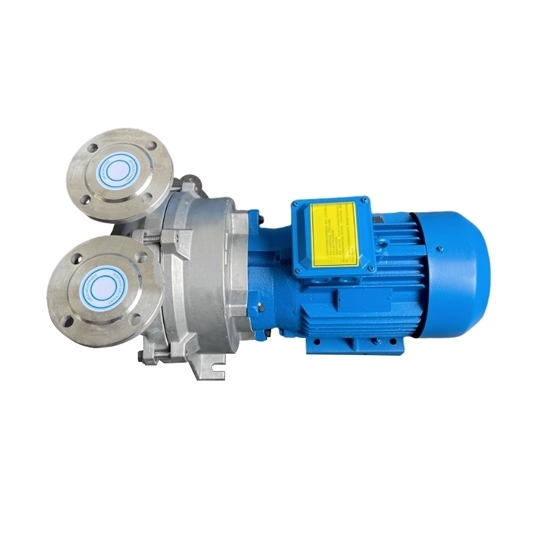

A 20 hp water ring vacuum pump is a type of industrial pump used for creating vacuum conditions in various applications. Aluminum bronze impeller is of high intensity and wearing well. The erosive-proof capacity of the water ring type vacuum pump can be improved by using it. Liquid ring vacuum pump is also valued for its ability to handle liquids and particulate-laden gases without clogging or damage, making them versatile and widely used in industries requiring vacuum or compression capabilities.
Features:
- Equipped with cavitation protection pipe interface.
- Flexible exhaust port design, no over compression.
- Designed with coaxial direct connection, which saves space and is easy to install.
- Vacuum pump adopts high quality mechanical seal as standard configuration.
Specification:
- Model: RDDLZ-2BV5161
- Power: 20 hp (15 kW)
- Rated Voltage: 380V
- Phase: 3 phase
- Frequency: 50 Hz
- Max Gas Volume: 500 m3/h
- Extreme Pressure: 3300 Pa
- Noise: 74 dB
- Material: stainless steel
- Net Weight: 296kg

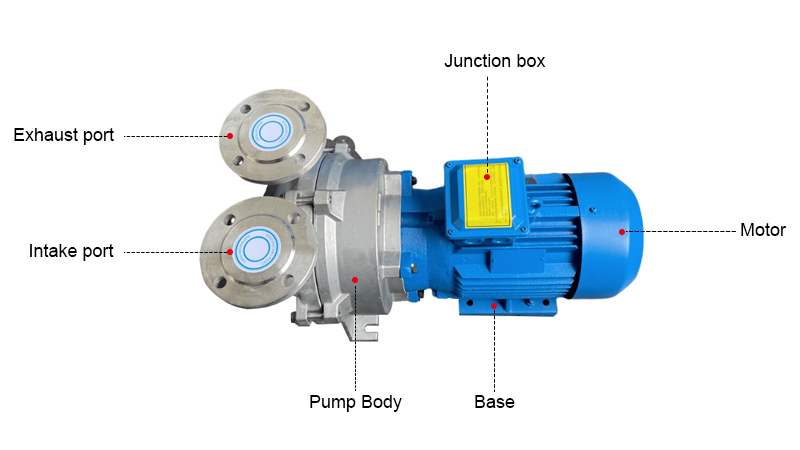

Details:

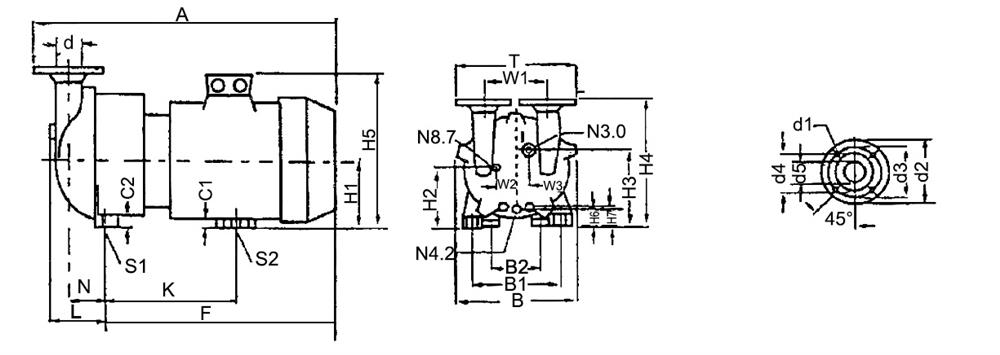

Dimension (Unit: mm)
| 2BV5-161 | A | B | B1 | B2 | C1 | C2 | H1 |
| 1044 | 479 | 370 | 389 | 52 | 30 | 210 | |
| H2 | H3 | H4 | H5 | H6 | H7 | K | |
| 222 | 300 | 521 | 485 | 50 | 77 | 565 | |
| L | F | N | S1 | S2 | T | d1 | |
| 201 | 808 | 138 | φ15×27 | φ14 | 450 | 22 | |
| d2 | d3 | d4 | d5 | W1 | W2 | W3 | |
| 200 | 156 | 130 | 80 | 250 | 81 | 41 | |
| N3.0 | N4.2 | N8.7 | / | / | / | / | |
| G3/4" | G3/8" | G3/8" | / | / | / | / |
Application:
Tips: What is Extreme Pressure of Water Ring Vacuum Pump?
The extreme pressure of a water ring vacuum pump typically refers to the highest pressure that the pump can achieve while still maintaining its proper functioning. This pressure is often limited by the strength and integrity of the pump’s components, such as the impeller, casing, and seals. The extreme pressure rating of a water ring vacuum pump is usually specified by the manufacturer and can vary widely depending on the pump's size, design, and materials of construction.
