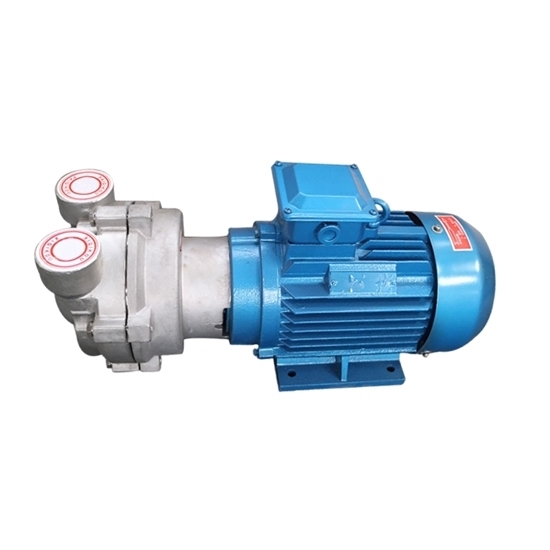

1 HP (0.81 KW) Water Ring Vacuum Pump

0 reviews • Write a review

from

$1,718.09

Ex Tax: $1,718.09

Stock: In Stock
Model: RDDLZ-WRVP-01
Weight: 1.00
SKU: RDDLZ-WRVP-01

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

A water ring vacuum pump is a type of vacuum pump that uses water as the working fluid to create a vacuum. It is also known as a liquid ring vacuum pump or a water ring pump. As the impeller rotates, 1 hp water ring vacuum pump creates centrifugal force, which compresses and moves air or gases towards the discharge port, effectively creating a vacuum.

Features:

Equipped with cavitation protection pipe interface.
Flexible exhaust port design, no over compression.
Designed with coaxial direct connection, which saves space and is easy to install.
Vacuum pump adopts high quality mechanical seal as standard configuration.

Specification:

Model: RDDLZ-2BV2060
Power: 1 hp (0.81 kW)
Rated Voltage: 380V
Phase: 3 phase
Frequency: 50 Hz
Max Gas Volume: 27 m³/h
Extreme Pressure: 3300 Pa
Noise: 62 dB
Material: stainless steel
Net Weight: 32kg

Dimension (Unit: mm)

2BV2-060	A	B	B1	E	H1	H2	H3
	455	186	140	100	90	118	126
	H4	H6	M	P2	P3	R	S2
	186	37.5	244	250	195	203	φ10
	W1	W2	W3	d	N3.0	N4.2	N8.7
	110	25.5	21	G1	G3/8"	G1/4"	G3/8"

Details

Application:

Tips: What is Water Ring Vacuum Pump?

A water ring vacuum pump, also known as a liquid ring vacuum pump, is a type of vacuum pump that uses water or another liquid as its operating medium to create vacuum pressure. It is a positive displacement pump that works by creating a rotating liquid ring inside the pump casing. The liquid ring serves as a seal and also acts as the working medium to compress the gas being pumped.
