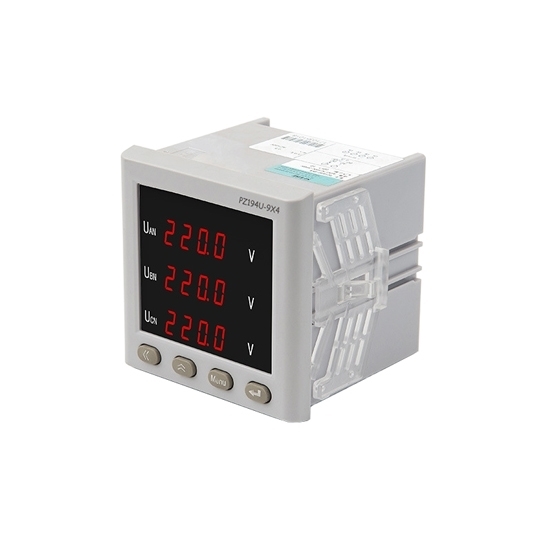

3 Phase AC Digital Panel Volt Meter

0 reviews • Write a review

from

$426.25

Ex Tax: $426.25

Stock: In Stock
Model: RDDLZ-PANEL-VM
Weight: 1.00
SKU: RDDLZ-PANEL-VM

Available Options

Short Description

Accuracy

Panel Size

Wiring Type

Communication

Analog Output

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

High performance digital panel voltmeter is suitable for the measurement of the three phase voltage parameters of the power distribution system. This panel meter has programmable ratios, supports analog output and communication functions, and can directly replace analog pointer volt meters.

Specification

Model			RDDLZ-PZ194U-□X4/□k4
Level of Accuracy (Optional)			0.5 Level, 0.2 Level
Display			LED Display
Display Data Refresh Frequency			1s
Input Characteristics	Voltage	Rated Value	AC 380V
		Overload	Duration: 1.2Un, Instantaneous: 20Un/1min
	Frequency		45 ~ 65Hz
Auxiliary Power	Working Scope		AC 80 ~ 270V (50/60Hz), DC 80 ~ 270V, DC 24V/48V
	Power Consumption		≤5VA
Switch Input			Dry Contact Mode
Relay Output			Contact Capacity (Resistive): AC 5A/250V, DC 5A/30V
Analog Output (Optional)			N/A or 4-20mA, Load ≤350Ω
Communication (Optional)			N/A or 1 Channel Modbus-RTU Protocol
Wiring (Optional)			3 Phase 4 Wire (Default) or 3 Phase 3 Wire
Protection Grade			Front Panel IP64, Rear Panel IP20
Working Temperature			-40℃ ~ 70℃ (LED)
Relative Humidity			-40℃ ~ 85℃ (LED)
Absolute Ability			Power Supply, Input, Output≥AC2KV
Altitude			≤2500m

Dimensions (Unit: mm)

Type	Panel Size (A1 x A2)	Installation Size (a1 x a2)	Cut-out Size (L1 x L2)	Installation Depth (D1)	Panel Thickness (D2)	Installation Screen Thickness (D3 max)	Reserved Size
Type	Panel Size (A1 x A2)	Installation Size (a1 x a2)	Cut-out Size (L1 x L2)	Installation Depth (D1)	Panel Thickness (D2)	Installation Screen Thickness (D3 max)	Horizontal (X)	Vertical (Y)
Type 2	120 x 120	110 x 110	111 x 111	55.5/76	15	5	10	20
Type 3	83 x 83	75 x 75	76 x 76	75	12.5	5	10	20
Type 5	96 x 48	90 x 43	91 x 44	68.5/82	10.5	10	40	20
Type 9	96 x 96	90 x 90	91 x 91	75/98	13.5	10	40	20
Type A	74 x 74	66 x 66	67 x 67	75/90	12.5	5	10	20
Type D	48 x 48	44.5 x 44.5	45 x 45	89	9.5	5	40	20

Tips for using the digital panel volt meter

Before use, the digital panel volt meter needs to be powered on for 15 minutes.
Pay attention to prevent vibration and impact, and do not use this meter in places with excessive dust and excessive harmful gases.
The input wire should not be too long. If the input terminal of the signal under test is long, please try a twisted-pair shielded wire.
If the signal is accompanied by high frequency interference, you should try the low frequency filter online.
When it is stored for a long time and not in use, please turn on the power once every three months for not less than 4 hours.
For long-term storage, avoid direct light, and should be stored at an ambient temperature of -25°C ~ 55°C.
If there is no display on the digital panel voltmeter, first check the auxiliary power supply and whether the voltage is within the range.
If the display is abnormal, check whether the input signal is normal and whether the signal terminal is tightened.
Unless the PT has enough power, the PT signal cannot be used as an auxiliary power source at the same time to ensure the normal operation of the instrument.
The current terminal screws in the CT circuit must be tightened to ensure reliable contact between incoming and outgoing wires to avoid malfunctions.
If you want to calibrate the voltmeter, the calibration instrument should be better than 0.1 level to ensure calibration accuracy.
