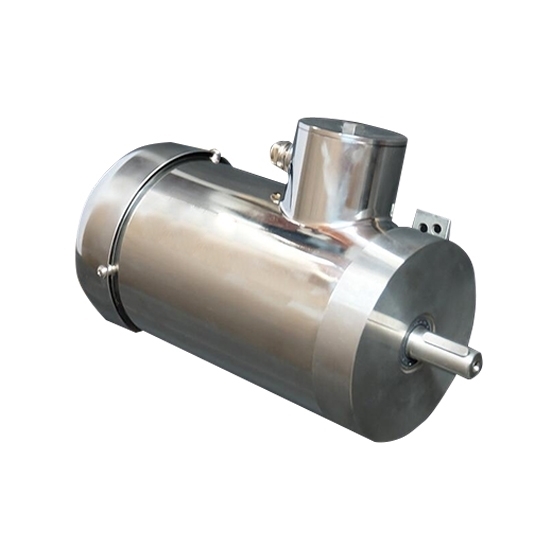

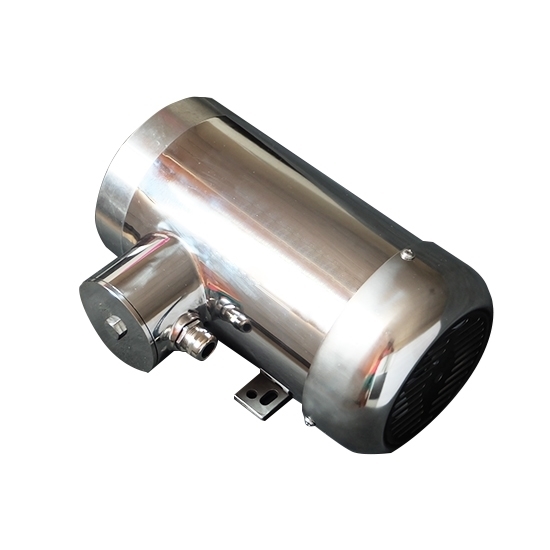

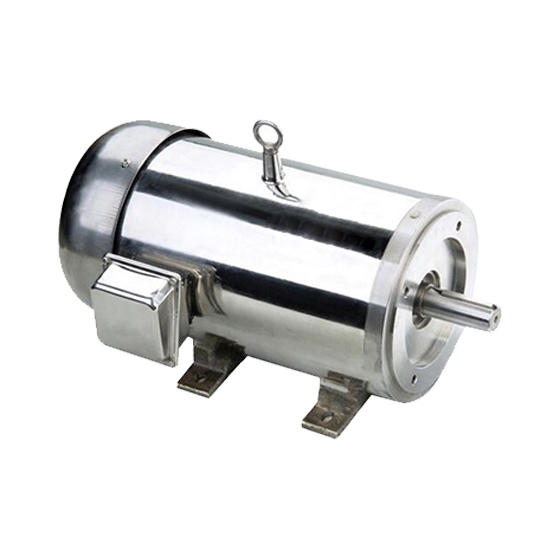

1hp (0.75kW) Stainless Steel Motor, 3 Phase, B3/ B5/ B14

0 reviews • Write a review

from

$885.46

Ex Tax: $885.46

Stock: In Stock
Model: RDDLZ-IEC-801
Weight: 1.00
SKU: RDDLZ-IEC-801

Available Options

Voltage

Installation

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

1hp stainless steel motor with 3 phase, TENV cooling type, IE 4 efficiency and class F insulation class. The stainless motor offers low noise, easy to clean and long service life.

Features

Smooth stainless steel enclosures easy to clean and sanitize.
IP65 for water protection rating ensures suitability for clean in place washdown procedures.
Encapsulated windings prevent any water and moisture from reaching the windings.
Low surface temperature with less operation costs due to high efficiency.

Specification

Model	RDDLZ-IEC-801
Rated power	1hp (750W)
Rated voltage	208V~230V/ 460V
Number of pole	2P
Phase	3 phase
Cooling method	TENV
Frequency	50/ 60Hz
Raged speed	2950r/min
Mounting type	B3/ B5/ B14
Stainless steel	304
Protection grade	IP65
Insulation class	Class F
Protect Feature	Waterproof
Efficiency	IE 4
Weight	29kg
Certificate	CE, UL
Warranty	12 months

Dimension

Mounting type	Frame size	Mounting dimensions (mm)
Mounting type	Frame size	A	A/2	B	C	D	E	F	G	H	K	M	N	P	R	S	T	Flange Hole	Shaft Hole	AB	AC	AD
B3	80	125	62.5	100	50	19	40	6	15.5	80	10	-	-	144	-	-	-	-	M6	150	144	135
B14		-	-	-	-	19	40	6	15.5	-	-	100	80	120	0	M6	3	4	M6	-	144	135
B5		-	-	-	-	19	40	6	15.5	-	-	165	130	200	0	12	3.5	4	M6	-	144	135

Details

Tips: The Basic Structure of Stainless Steel Motor.

The stainless steel motor is mainly composed of a stator and a rotor. The stator is a stationary part, and the rotor is a rotating part. There is a certain air gap between the stator and the rotor.
The stator is composed of iron core, winding and base. The rotor consists of an iron core and windings. The rotor windings have squirrel cage and wire wound windings. The squirrel-cage rotor is formed by inserting copper bars into the rotor core slots, and then welding all the copper bars at both ends on two copper end rings; the wire-wound rotor winding is the same as the stator winding, and the windings composed of coils are put into the rotor core In the slot.
