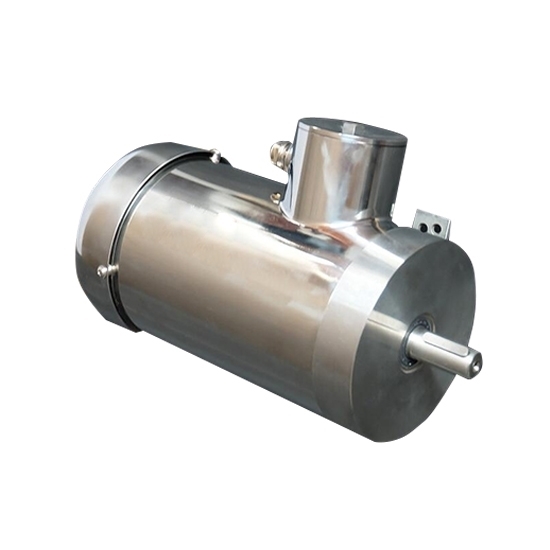

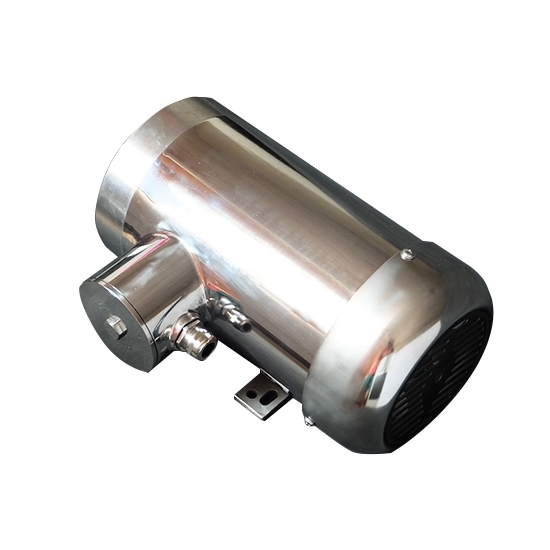

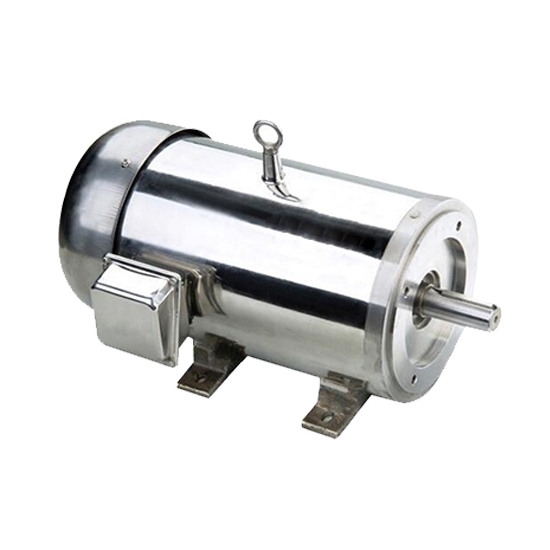

3hp (2kW) Stainless Steel Motor, 3 Phase, B3/ B5/ B14

0 reviews • Write a review

from

$1,253.46

Ex Tax: $1,253.46

Stock: In Stock
Model: RDDLZ-IEC-90L
Weight: 1.00
SKU: RDDLZ-IEC-90L

Available Options

Voltage

Installation

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

3 phase stainless steel motor with cheap price, which features three phase, rated voltage 208V~230V/ 460V. Stainless motor is widely used in fields with high hygiene requirements such as food, chemical industry, medical equipment, etc.

Features

Smooth stainless steel enclosures easy to clean and sanitize.
IP65 for water protection rating ensures suitability for clean in place washdown procedures.
Encapsulated windings prevent any water and moisture from reaching the windings.
Low surface temperature with less operation costs due to high efficiency.

Specification

Model	RDDLZ-IEC-90L
Rated power	3hp (2kW)
Rated voltage	208V~230V/ 460V
Number of pole	2P
Phase	3 phase
Cooling method	TEFC
Frequency	50/ 60Hz
Raged speed	2950r/min
Mounting type	B3/ B5/ B14
Stainless steel	304
Protection grade	IP65
Insulation class	Class F
Protect Feature	Waterproof
Efficiency	IE 4
Weight	45kg
Certificate	CE, UL
Warranty	12 months

Dimension

Mounting type	Frame size	Mounting dimensions (mm)
Mounting type	Frame size	A	A/2	B	C	D	E	F	G	H	K	M	N	P	R	S	T	Flange Hole	Shaft Hole	AB	AC	AD
B3	90L	190	95	140	70	28	60	8	24	112	12	-	-	206	-	-	-	-	M10	220	218	174
B14		-	-	-	-	28	60	8	24	-	-	130	110	160	0	M8	3.5	4	M10	-	218	174
B5		-	-	-	-	28	60	8	24	-	-	215	180	250	0	15	4	4	M10	-	218	174

Details

Tips: Types of Protection of Stainless Steel Motor.

Short circuit protection:
A short circuit is a phenomenon in which current flows through an abnormal path due to insulation damage, wiring errors, and other reasons. The instantaneous short-circuit current may reach dozens or even hundreds of times the rated current of the motor. If the power supply cannot be cut off in time, it may cause irreparable damage to the motor, and may also cause electric shock, fire and other hazards. The short-circuit protection should meet the following requirements: one is that the power supply must be cut off within a short time; the other is that the protection device should not malfunction when the motor is started and braked normally.
