50W Digital Soldering Station, 110V/220V

0 reviews • Write a review

from

$109.82

Ex Tax: $109.82

Stock: In Stock
Model: RDDLZ-SS-950D
Weight: 1.00
SKU: RDDLZ-SS-950D

Available Options

AC Voltage

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

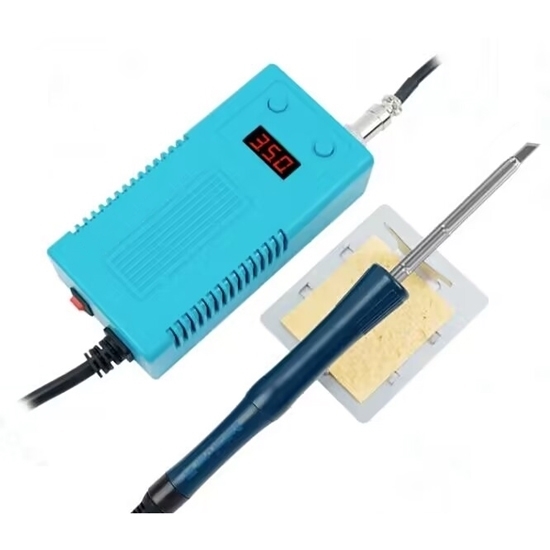

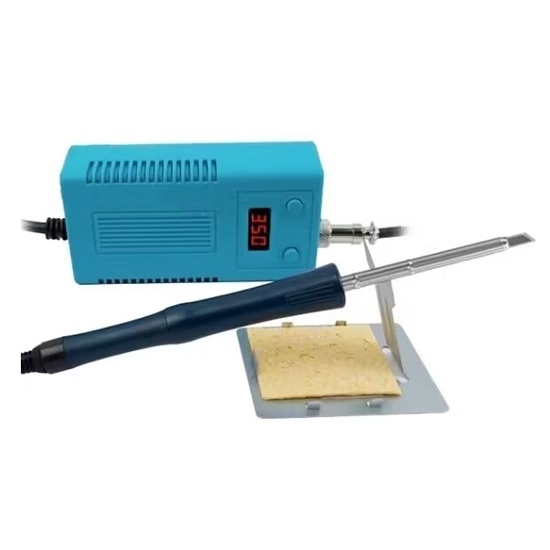

The 50W soldering station controls temperatures from 180°C to 480°C and features a clear digital display, high efficiency, manual temperature adjustment, and automatic memory of the positions. This digital soldering station is a must for anyone looking for precise and reliable soldering.

Specification:

Model	RDDLZ-SS-950D
AC Voltage	110V/220V
Output Frequency	60Hz/50Hz
Output Voltage	24V
Max Power	50W

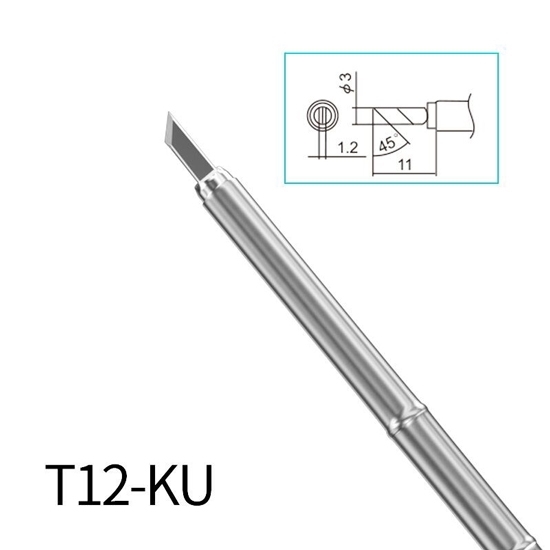

Soldering Iron Tip	T12-KU
Temperature Range	180~450°C
Temperatur Stability	±2°C
Tip to Ground Resistance	<2Ω
Tip to Ground Potential	<2mV
Dimensions	1336035mm
Hand Piece Cord	1.3m
Heating Type	Internal Heating
Special Fuction	Soldering Iron
Adjustable Temperature Method	Botton Rotation
Color	Black
Package Weight	0.5kg

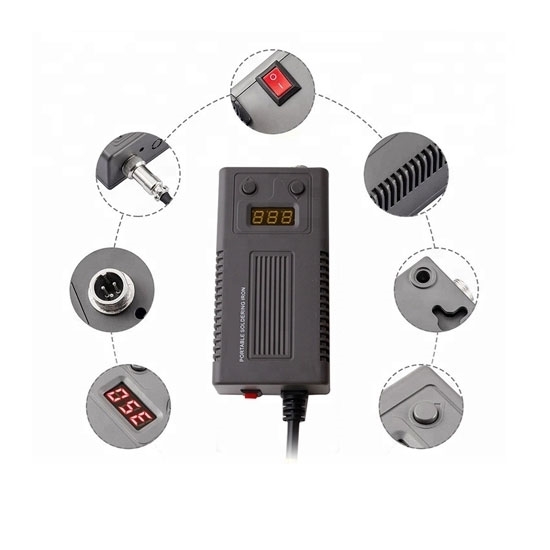

Digital Soldering Station Features

1. Split design, easy to replace the heating core, fast heating, light weight, easy to carry.
2. Silicone handle, high temperature material, soft wire, good hand feeling, prevent burns, safe to use.
3. Unique gear temperature adjustment function, temperature gear automatically remembers.

Tips: What should I do if the main unit is working properly and the soldering iron is not hot?

Step 1, adjust the resistance to the resistance file with a multimeter and measure the resistance of the handle interface. 1 hole 2 holes (heating) simultaneously measured resistance value is 10Ω, the data is normal, the handle is no problem, if there is no resistance, the second step is required.

Step 2, disassemble the handle and measure the resistance of the T13 or T12 heater. The data indicates that the heater has no problem. If there is no resistance, the heater is damaged. If there is resistance, the handle and the host are tightly connected. If the handle does not heat up, the handle wire is damaged.
