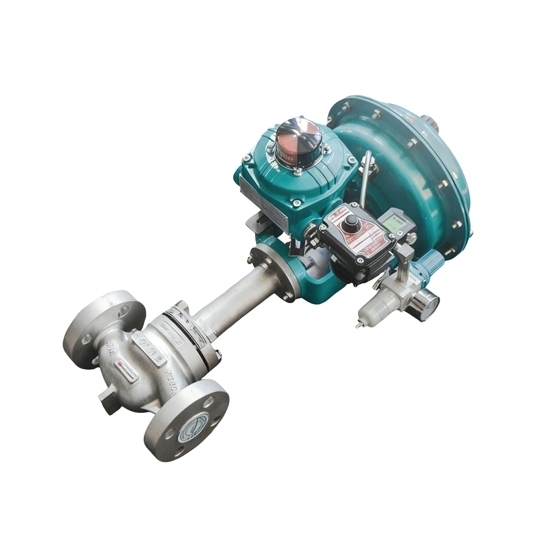

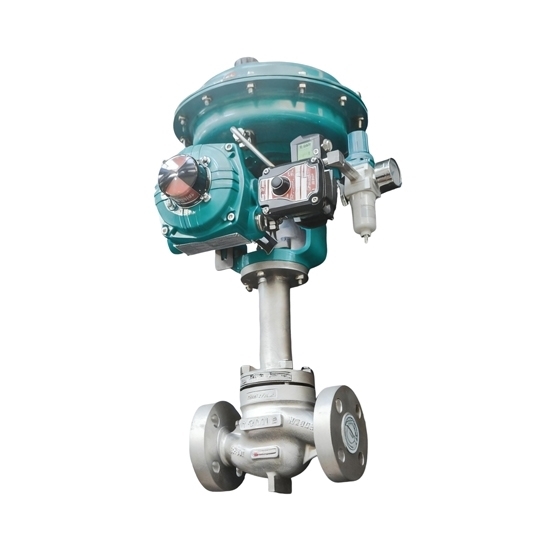

1-1/4" DN32 Pneumatic Globe Valve

0 reviews • Write a review

from

$1,512.99

Ex Tax: $1,512.99

Stock: In Stock
Model: RDDLZ-PGV-DN32
Weight: 1.00
SKU: RDDLZ-PGV-DN32

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This globe valve cannot be used for drinking water.

With a nominal pressure rating of PN16 MPa, rated flow coefficient of 20 Kv indicates its efficiency in regulating flow rates. In terms of pressure differentials, the valve can handle positive action up to 1.85 MPa and opposite reaction up to 2.47 MPa.

Feature

By using a thin-film multi-spring actuator connected to the adjusting mechanism by three columns, the overall height can be reduced by about 30 per cent and the weight by about 30 per cent. The overall height can be reduced by about 30 per cent and the weight by about 30 per cent.
The valve body is designed according to the principle of fluid dynamics into an equal cross-section low flow resistance flow path, the rated flow coefficient increases by 30%.
Compact structure, light weight, sensitive action, fluid channel is S streamline, small pressure drop loss, large capacity, easy disassembly and installation.
Top-guided construction with multi-spring membrane actuator.

Specification

Model	RDDLZ-810D-1S2A-4DK41-DN32
Pipe Diameter	1-1/4" DN32
Nominal Pressure	PN16 MPa
Rated Flow Coefficient	20KV
Rated Stroke	8 mm
Film Effective Area	100 cm²
Allowable Pressure Difference	Positive Action: 1.85
Allowable Pressure Difference	Opposite Reaction: 2.47
Signal Pressure	0 or 250
Allowable Leakage	Hard Seal: General: 10^-4 × valve rated capacity; Tight type: single-seat: 1.2 × 10^-7
Allowable Leakage	Soft Seal: Class VI
Operating Temperature	≤ 250℃
Connection Method	Flangeless
Medium of Use	Gas and Liquid
Valve Body Material	304
Bonnet Type	Standard type (-17 ~ +250℃)
Cover Type	Screw compression type
Sealing Material	V-shaped PTFE packing, reinforced PTFE packing, graphite braided packing, flexible graphite
Valve Core Type	Single-seat spool
Flow Characteristics	Quick opening characteristic
Included Accessories	Pneumatic diaphragm actuator, DC24V solenoid valve, limit switch, and air filter regulator.

Dimension (Unit: mm)

DN	A	L	H	H1	H4
20	290	200	75	180	310

Application

Tips: What maintenance procedures are recommended for this valve?

Regular Inspection: Conduct routine visual inspections to check for any signs of wear, corrosion, or damage to the valve body, actuator, and other components. Regular inspections help identify potential issues early on.
Lubrication: Apply lubrication to moving parts, especially those involved in the actuation mechanism, to reduce friction and ensure smooth operation. Use a suitable lubricant recommended by the manufacturer.
Check Seals and Gaskets: Inspect all seals and gaskets for signs of wear, deterioration, or leaks. Replace any damaged or worn seals to maintain the integrity of the valve's sealing system.
Verify Valve Position Indicators: Ensure that the valve position indicators, whether visual or electronic, are functioning correctly. This is crucial for operators to have accurate information about the valve's status.
Inspect Pneumatic System: Check the pneumatic system for leaks, pressure irregularities, or any issues that may affect the actuation of the valve. Address any pneumatic system problems promptly to maintain reliable valve control.
