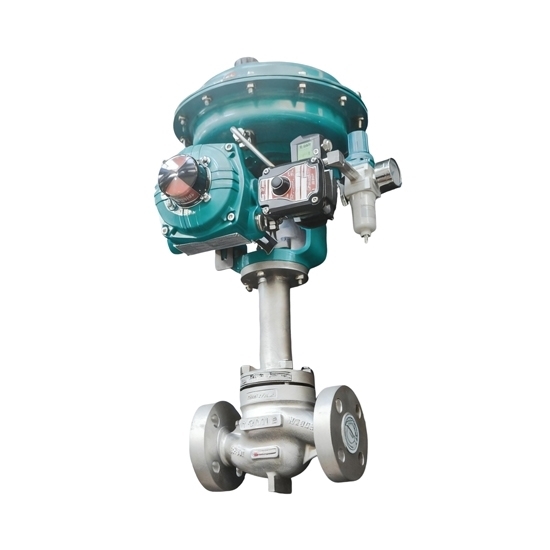

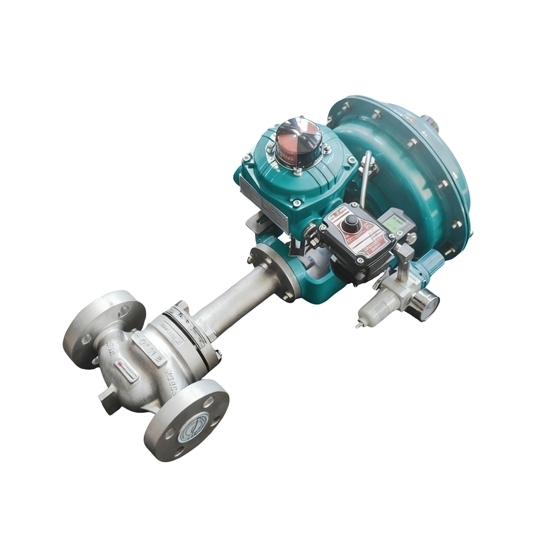

1" DN25 Pneumatic Globe Valve

0 reviews • Write a review

from

$1,420.98

Ex Tax: $1,420.98

Stock: In Stock
Model: RDDLZ-PGV-DN25
Weight: 1.00
SKU: RDDLZ-PGV-DN25

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This globe valve cannot be used for drinking water.

Nominal pressure of PN16 MPa, designed to handle both gas and liquid mediums, 1" pneumatic globe valve provide flexibility across a range of industrial processes.

Feature

The valve body is designed according to the principle of fluid dynamics into an equal cross-section low flow resistance flow path, the rated flow coefficient increases by 30%.
Compact structure, light weight, sensitive action, fluid channel is S streamline, small pressure drop loss, large capacity, easy disassembly and installation.
Top-guided construction with multi-spring membrane actuator.
By using a thin-film multi-spring actuator connected to the adjusting mechanism by three columns, the overall height can be reduced by about 30 per cent and the weight by about 30 per cent. The overall height can be reduced by about 30 per cent and the weight by about 30 per cent.

Specification

Model	RDDLZ-810D-1S2A-4DK41-DN25
Pipe Diameter	1" DN25
Nominal Pressure	PN16 MPa
Rated Flow Coefficient	11KV
Rated Stroke	8 mm
Film Effective Area	100 cm²
Allowable Pressure Difference	Positive Action: 2.91
Allowable Pressure Difference	Opposite Reaction: 3.88
Signal Pressure	0 or 250
Allowable Leakage	Hard Seal: General: 10^-4 × valve rated capacity; Tight type: single-seat: 1.2 × 10^-7
Allowable Leakage	Soft Seal: Class VI
Operating Temperature	≤ 250℃
Connection Method	Flangeless
Medium of Use	Gas and Liquid
Valve Body Material	304
Bonnet Type	Standard type (-17 ~ +250℃)
Cover Type	Screw compression type
Sealing Material	V-shaped PTFE packing, reinforced PTFE packing, graphite braided packing, flexible graphite
Valve Core Type	Single-seat spool
Flow Characteristics	Quick opening characteristic
Included Accessories	Pneumatic diaphragm actuator, DC24V solenoid valve, limit switch, and air filter regulator.

Dimension (Unit: mm)

DN	A	L	H	H1	H4
20	290	184	58	140	285

Application

Tips: Are there any safety features incorporated into the valve design?

The 1" Pneumatic Globe Valve is engineered with several safety features to ensure reliable and secure operation in various industrial applications. These safety measures are integrated into the design to mitigate potential risks and enhance the overall performance of the valve. Here are some key safety features:

Pressure Relief Mechanism: The valve is equipped with a pressure relief mechanism that automatically activates if the internal pressure exceeds the specified limits. This feature prevents overpressurization, safeguarding both the valve and the connected system.
Emergency Shutdown Capability: In critical situations, the valve has an emergency shutdown function. This allows for rapid closure of the valve to isolate the flow and prevent further damage or potential hazards.
Corrosion-Resistant Materials: The valve is constructed from materials that are resistant to corrosion and wear, ensuring the longevity of the valve and minimizing the risk of failure due to material degradation.
Sealing Integrity: The valve incorporates robust sealing mechanisms to prevent leakage. This not only ensures efficient operation but also minimizes the risk of environmental contamination or harm to personnel.
