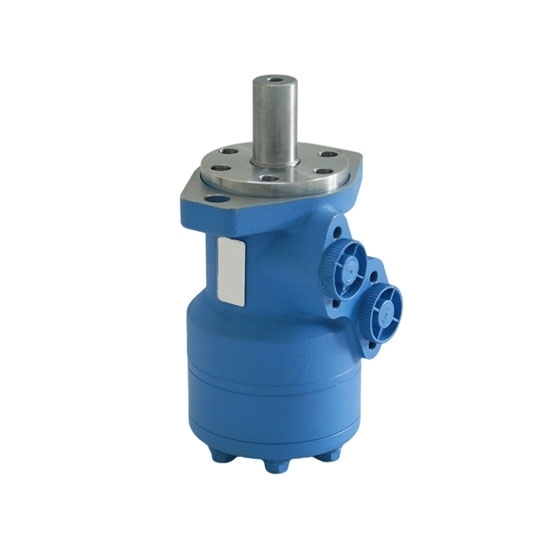

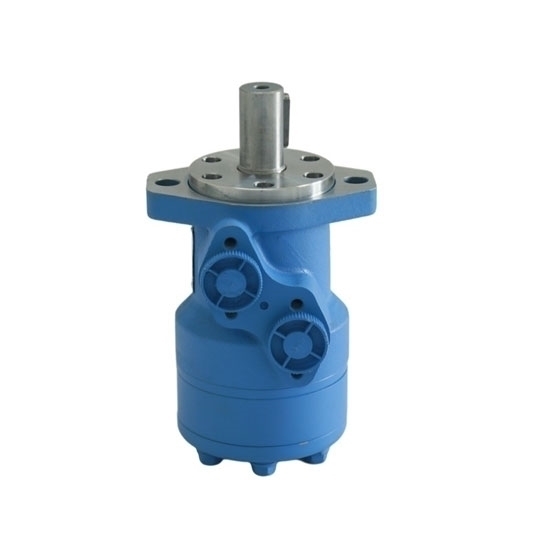

Hydraulic Orbital Motor, 200cc/rev

0 reviews • Write a review

from

$322.89

Ex Tax: $322.89

Stock: In Stock
Model: RDDLZ-HOM-200
Weight: 1.00
SKU: RDDLZ-HOM-200

Available Options

Short Description

Shaft Type

Flange Type

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

RDDLZ Hydraulic orbital motor is designed for disc distribution flow, which can provide improved performance at low speed and higher volumetric for the automatically compensated wear. It can be used on heavy vehicles and machinery in traction drive applications.

Specification

Model		RDDLZ-OMP-200
Shaft Type (Optional)		Flat Key, Splined
Flange Type (Optional)		2 Bolts, 4 Bolts
Displacement		200 cc/rev (200 cm³/rev)
Working Pressure		15 MPa
Flow	Continuous	57 LPM
	Intermittent	68 LPM
Max.Speed	Continuous	284 rpm
	Intermittent	339 rpm
Pressure	Continuous	110 ∆Bar
	Intermittent	124 ∆Bar
Torque	Continuous	285 Nm
	Intermittent	319 Nm
Weight		8kg

Note:

A simultaneous maximum torque and maximum speed are not recommended.
∆Bar refers to true pressure difference between inlet port and outlet port.
Continuous Rating means that the motor may be run continuously at these ratings.
Intermittent operation refers to that the motor running time must not exceed 10% per minute under this condition.

*To assure the best orbital motor life, run it for approximately one hour at 30% of rated pressure before application to full load. Be sure this motor is filled with fluid before any load applications.

Dimensions (Unit: mm)

L1=167mm

Hydraulic Orbital Motor Shaft (Unit: mm)

Flange Types (Unit: mm)

L=173mm

Details

Tips: What do you need to pay attention to when the hydraulic orbital motor fails and needs to be disassembled?

Do not bump the joint surfaces during disassembly and assembly. If there is any bump, the hydraulic orbital motor must be repaired before assembling.
Wash all parts with gasoline or kerosene before assembling. It is forbidden to use cotton yarn or rags to scrub the parts. Brush or silk cloth should be used. Never immerse the rubber ring in gasoline. After the orbit motor is installed, it is necessary to add 50-100 ml of hydraulic oil to the two oil ports before installing the machine and rotating the output oil. If there is no abnormal phenomenon, the machine can be installed.
To ensure the correct rotation direction of the orbital motor, pay attention to the positional relationship between the rotor and the output shaft.
The back cover bolts must be tightened diagonally gradually with a tightening torque of 4~5 kgf.m.
