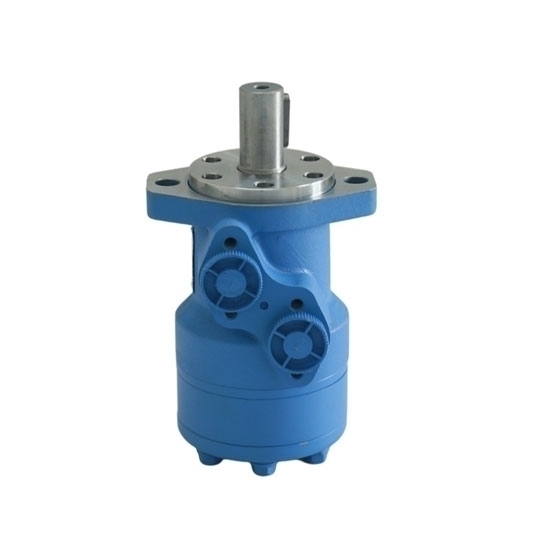

Hydraulic Orbital Motor, 250cc/rev

0 reviews • Write a review

from

$324.59

Ex Tax: $324.59

Stock: In Stock
Model: RDDLZ-HOM-250
Weight: 1.00
SKU: RDDLZ-HOM-250

Available Options

Short Description

Shaft Type

Flange Type

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

RDDLZ hydraulic orbital motor is widely applied in agriculture machinery, fishing machinery, plastic industry, mining, and construction machinery, especially fitted to lower load applications, such as plastic injection mold machines, cleaners, grass cutters, winches, conveyors, slews, sweeper drives, augers, cutters, mowers and chippers.

Specification

Model		RDDLZ-OMP-250
Shaft Type (Optional)		Flat Key, Splined
Flange Type (Optional)		2 Bolts, 4 Bolts
Displacement		250 cc/rev (250 cm³/rev)
Working Pressure		15 MPa
Flow	Continuous	57 LPM
	Intermittent	68 LPM
Max.Speed	Continuous	235 rpm
	Intermittent	281 rpm
Pressure	Continuous	100 ∆Bar
	Intermittent	124 ∆Bar
Torque	Continuous	304 Nm
	Intermittent	378 Nm
Weight		8kg

Note:

A simultaneous maximum torque and maximum speed are not recommended.
∆Bar refers to true pressure difference between inlet port and outlet port.
Continuous Rating means that the motor may be run continuously at these ratings.
Intermittent operation refers to that the motor running time must not exceed 10% per minute under this condition.

*To assure the best orbital motor life, run it for approximately one hour at 30% of rated pressure before application to full load. Be sure this motor is filled with fluid before any load applications.

Dimensions (Unit: mm)

L1=176mm

Hydraulic Orbital Motor Shaft (Unit: mm)

Flange Types (Unit: mm)

L=182mm

Details

Tips: Troubleshooting of hydraulic orbital motor

Failures	Reasons	Solutions
Hydraulic orbital motor temperature is too high	Overloaded	Load as required
Hydraulic orbital motor temperature is too high	The parts are damaged, especially the stator	Replace damaged parts
Excessive noise	The hydraulic system has air	Exclude the air in the system according to the operation precautions
	Overspeed	Adjust motor speed
	Parts are damaged	Replace damaged parts
Oil leakage at the shaft end	Damaged or scratched sealing ring	Replace the sealing ring
	Dirt or water in the input end causes the shaft to rust	Remove spline rust
	Excessive radial load	The radial load shall not exceed the specified value
	Excessive back pressure	Connect to external drain pipe
Oil leakage on both sides of the stator	O ring is damaged	Replace the sealing ring
	Dirt or burrs on the joint surface	Disassemble, clean and deburr
	Back cover bolts are not tight	Tighten the bolts
Shaft does not rotate	Work device stuck	Check working device
	System problem	Check the system
	Large radial axial load	Check installation
Insufficient torque	The oil temperature is too high or the oil viscosity is too low	Enhanced cooling
Insufficient torque	The motor efficiency is reduced due to the wear of the rotor or the small linkage shaft	Replace worn parts
