1-1/4" Pneumatic Angle Seat Valve, 2 Way, 2 Position

0 reviews • Write a review

from

$173.09

Ex Tax: $173.09

Stock: In Stock
Model: RDDLZ-ANGLE-32
Weight: 1.00
SKU: RDDLZ-ANGLE-32

Available Options

Short Description

Actuator Material

Valve Status

Pipe Thread Type

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Low price 1-1/4 inch pneumatic angle seat valve is an inclined seat valve that works with stainless steel or plastic pneumatic actuator. Angle slanted seat valve can be used for gas, liquid, steam and corrosive control. It has a radiator to protect the actuator, which prolongs the service life.

Specification

Model: RDDLZ-KLJZF-DN32
Pipe Thread Type: 1-1/4 inch (DN32), ZG, G or NPT
Working Medium: Air, Water, Oil, Gas, Steam
Pneumatic Fitting Type: ZG 1/4"
Medium Temperature: -10℃~+180℃
Ambient Temperature: -10℃~+60℃
Nominal Pressure: 1.6MPa
Air Pressure: 0.4~0.8MPa
Valve Body Material: Stainless Steel (SS304, SS316)
Sealing Material: PTFE
Actuator Material (Optional): Stainless Steel or Plastic (Polyamide)

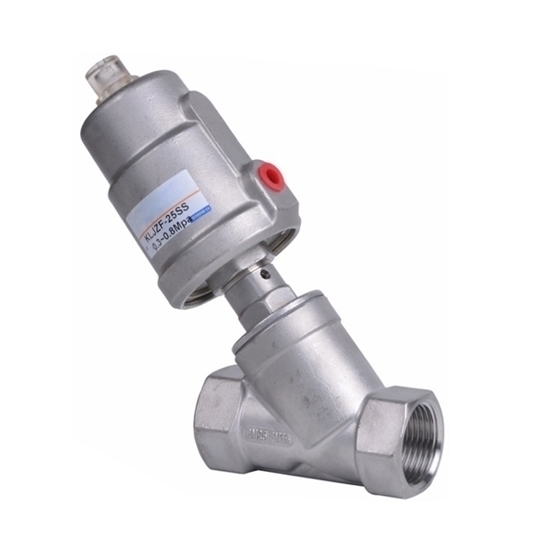

Angle Seat Valve with SS Actuator Dimension (Unit: mm)

Actuator	D	R	P	G	H	L	L1	T
63	76	42	ZG1/8"	ZG1-1/4"	182	188	110	21

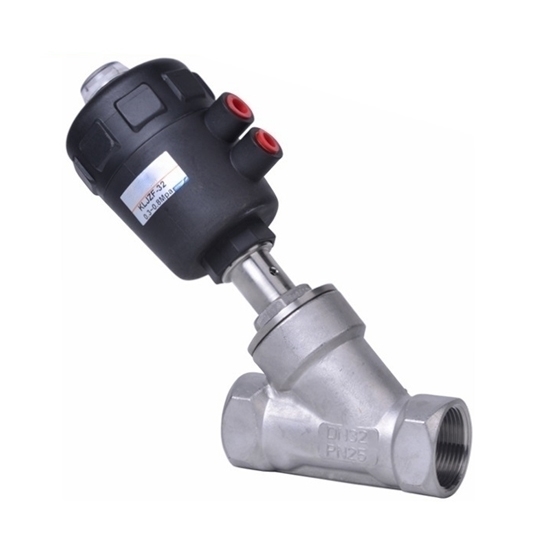

Angle Seat Valve with Plastic Actuator Dimension (Unit: mm)

Actuator	D	A	B	C	φE	F	G	H
63	ZG1-1/4"	117	220	21	80	52	120	185

Tips: Pneumatic angle seat valve application

Angle seat valve is widely used in short-time frequent start, with the characteristics of sensitive response and accurate action. Angle seat valve is a common pipeline switch in automatic control system. It is widely used in printing and weaving, printing and dyeing, bleaching, food, washing, chemical industry, water treatment, medicine and other automatic machinery and equipment.
