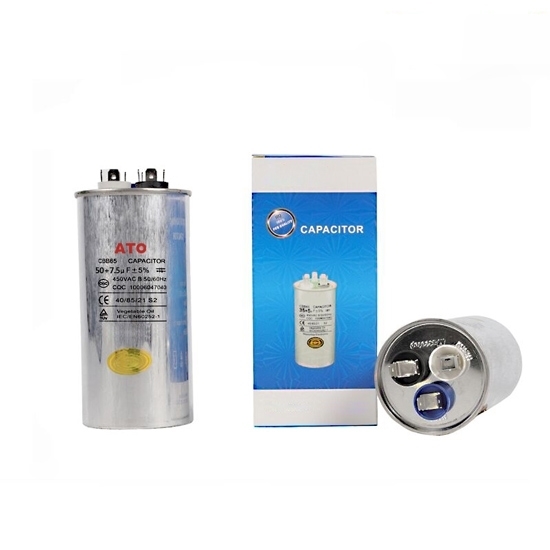

Safety 50/7.5 mfd AC capacitor has a dual run capacitor, designed for air conditioning. 450V high voltage capacitor offers the initial jolt of electricity your air conditioner’s motors need to run. High-quality air conditioner capacitor helps the motor start and run.

Features and applications

50+7.5 mfd air conditioner capacitor has advantages of low dissipation, high insulation resistance, good self-healing character, anti-striking current, strong over-carrier capacity and steady electric performance, and reliable safety with the inner anti-explosion device, etc. It is applied in air conditioning, refrigerator, and compressor. RDDLZ air conditioner capacitor is helpful for motors starting and running.

Specifications

Model: RDDLZ-CBB65-5075
Ambient Temperature: -40~85℃
Rated Voltage (AC): 450V
Range of Capacitance: 1+1~80+15
Testing Voltage (VAC): T-T: 2Un/2S, T-C: ≥2400VAC/2S
Dissipation Factor: tan δ≤0.002 (100Hz)
Operating Frequency: 50/60Hz
Capacitance Tolerance: ±5% or fulfilled upon request

50/7.5 MFD Air Conditioner Capacitor Dimensions (D: 50mm H: 130mm)

Tips: How long can air conditioning capacitors last?

The actual service life of power capacitors has always been a common concern of users and manufacturers. The manufacturers of power capacitors produce them in accordance with national standards and conditions, and 90% of them can operate reliably for 20-30 years. However, the actual situation is that the same capacitor has a large difference in service life due to the different conditions of use.

The life of air conditioning capacitors is related to the grid voltage, frequent starting and their own quality. If the quality is good, it can be used for the same life as the air conditioner, while the poor quality may be a few months.
