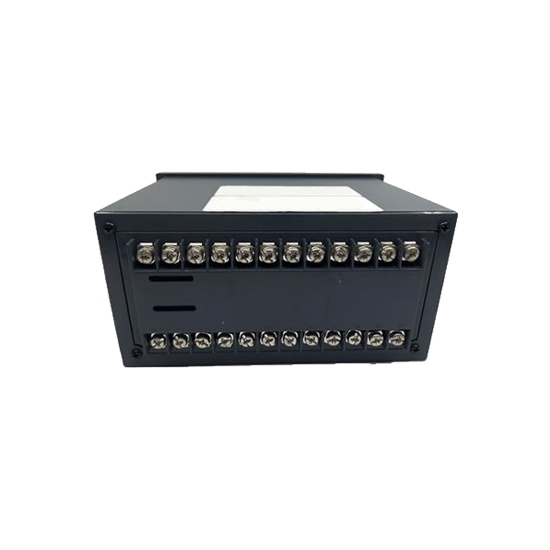

4 Digit Display Controller For Load Cells

0 reviews • Write a review

from

$244.60

Ex Tax: $244.60

Stock: In Stock
Model: RDDLZ-DDC-CHB2
Weight: 1.00
SKU: RDDLZ-DDC-CHB2

Available Options

Short Description

Power Supply

Communication Port

Output Signal

Input Signal

External Power Supply

Number of Alarm Output

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

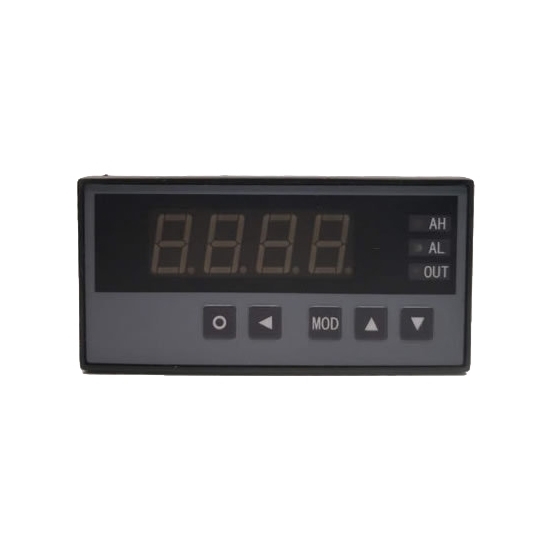

The primary function of the 4 digital display controller is to process analog signals from load cells, converting them into digital readings for easy interpretation. These controllers are often employed in weighing systems, industrial applications, or any scenario where accurate measurement of weight or force is essential.

Specification

Model		RDDLZ-CHB2-160x80
PDF Download		4 Digit Display Controller User Manual
Voltage	AC Power	100-240V AC 50/60 Hz
Voltage	AC/DC Power	10-24V AC 50/60 Hz, 10-24V DC
Consumption Power	AC Power	Below 7VA
Consumption Power	AC/DC Power	AC: Below6VA, DC: Below 5W
Allowable Voltage Variation Range		90~110% of Power Supply Voltage
Insulation Resistance		100MΩ or More (500V DC MEGA Standard)
Withstand Voltage		1 Minute at 2000V AC 50/60 Hz
Anti-Interference		IEC61000-4-2 (electrostatic discharge), level III IEC61000-4-4 (Electrical Fast Transient Burst), Level III IEC61000-4-5 (Surge), level III
Protection Grade		IP65 (Front Part of the Digital Panel Meter)
Ambient Temperature		10~55℃, Storage: -25~65℃
Environmental Humidity		35~85%RH, Storage: 35~85%RH
Dimension		160x80x125mm
Measurement Control Speed		More Than 10 times/second
Basic Error		±0.2%F.S
Display Range		-1999~9999
Input Signal	Voltage V	0-5V DC, 1-5V DC
	Current I	4-20/0-10/0-20 mA
	mV M	±20, ±50, ±90mV
Digital Filtering		Inertia, Average, Moving Average, etc.
Contact Output	A1-A4	1-4 points, 250VAC/3A Resistive Load
Contact Input	K	1 External Binary Input for Clearing
Analog Output (Resolution 1/3000)	M1	Current Output: 4-20mA, 0-10mA, 0-20mA
Analog Output (Resolution 1/3000)	M2	Voltage Output: 1-5V, 0-5V
Communication Interface	C1	TC ASCⅡ Protocol RS232
	C2	TC ASCⅡ Protocol RS485
	R1	Modbus-RTU Protocol RS232
	R2	Modbus-RTU Protocol RS485
External Power Supply	P1	24V±5%, Below 50mA
	P1G	24V±5%, Below 100mA
	P2	12V±5%, Below 50mA
	P2G	12V±5%, Below 100mA
	P3	Precision Power Supply, 10V±2%, Below 30ppm, 100mA

Dimension (Unit: mm)

a	b	c	d	e	f	g
160	80	10	115	75	152	76

Wiring Diagram

Tips: 4 digit display controller for load cells

A 4 digit display controller serves as a vital interface between load cells and users. It interprets the signals received from load cells, which measure force or weight, and presents this data in a user-friendly numerical format on a 4 digit display. Load cells convert mechanical force into electrical signals, but these signals require interpretation for meaningful human understanding.

The controller processes the analog signals from load cells, performs necessary conversions, and then showcases the resultant weight or force measurement on the digital display. It enhances usability by enabling users to conveniently read and interpret the weight or force values captured by the load cells. Additionally, such controllers often include features like calibration options, signal filtering, and display settings, ensuring accurate and calibrated readings for various applications, such as industrial scales, laboratory equipment, or other systems where precise weight measurement is critical.
