3 Phase AC Digital Ampere Meter

0 reviews • Write a review

from

$612.39

Ex Tax: $612.39

Stock: In Stock
Model: RDDLZ-PANEL-AM
Weight: 1.00
SKU: RDDLZ-PANEL-AM

Available Options

Short Description

Accuracy

Panel Size

Wiring Type

Communication

Analog Output

Input Current

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

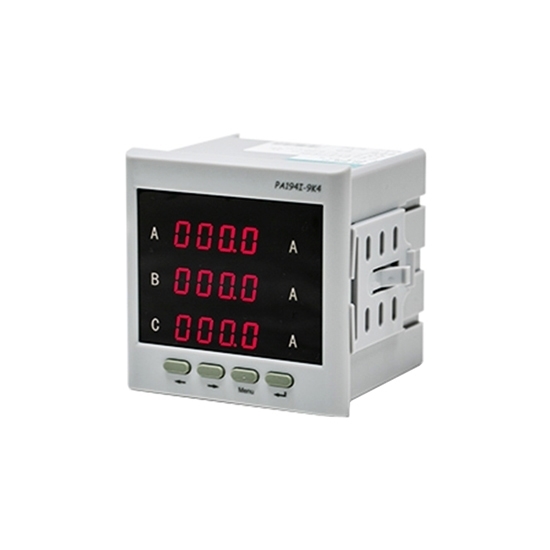

Economical price digital display AC ammeter is suitable for the measurement of the three phase current parameters of the power distribution system. This panel ammeter has programmable ratios, supports analog output and communication functions, and can directly replace analog pointer meters.

Specification

Model			RDDLZ-PA194I-□X4/□k4
Level of Accuracy (Optional)			0.5 Level, 0.2 Level
Display			LED Display
Display Data Refresh Frequency			1s
Input Characteristics	Current	Rated Value (Optional)	AC 5A (Default) or 1A
		Overload	Duration: 1.2In, Instantaneous: 20In/1s
	Frequency		45 ~ 65Hz
Auxiliary Power	Working Scope		AC 80 ~ 270V (50/60Hz)
	Power Consumption		≤5VA
Switch Input			Dry Contact Mode
Relay Output			Contact Capacity (Resistive): AC 5A/250V, DC 5A/30V
Analog Output (Optional)			N/A or DC 4-20mA, Load ≤350Ω
Communication (Optional)			N/A or 1 Channel Modbus-RTU Protocol
Wiring (Optional)			3 Phase 4 Wire (Default) or 3 Phase 3 Wire
Protection Grade			Front Panel IP64, Rear Panel IP20
Working Temperature			-40℃ ~ 70℃ (LED)
Relative Humidity			-40℃ ~ 85℃ (LED)
Absolute Ability			Power Supply, Input, Output≥AC2KV
Altitude			≤2500m

Dimensions (Unit: mm)

Type	Panel Size (A1 x A2)	Installation Size (a1 x a2)	Cut-out Size (L1 x L2)	Installation Depth (D1)	Panel Thickness (D2)	Installation Screen Thickness (D3 max)	Reserved Size
Type	Panel Size (A1 x A2)	Installation Size (a1 x a2)	Cut-out Size (L1 x L2)	Installation Depth (D1)	Panel Thickness (D2)	Installation Screen Thickness (D3 max)	Horizontal (X)	Vertical (Y)
Type 2	120 x 120	110 x 110	111 x 111	55.5/76	15	5	10	20
Type 3	83 x 83	75 x 75	76 x 76	75	12.5	5	10	20
Type 5	96 x 48	90 x 43	91 x 44	68.5/82	10.5	10	40	20
Type 9	96 x 96	90 x 90	91 x 91	75/98	13.5	10	40	20
Type A	74 x 74	66 x 66	67 x 67	75/90	12.5	5	10	20
Type D	48 x 48	44.5 x 44.5	45 x 45	89	9.5	5	40	20

Tips: What is a 3 phase digital ampere meter?

The three phase digital ampere meter is used to set the CT parameters through the panel buttons to visually display the system's one-time operating current. The three rows of digital tubes simultaneously display the 3 phase AC current value. The LED display is clear and high precision. This panel ammeter can replace the traditional analog pointer meter with RS485 interface and analog quantity, upper and lower limit alarm function, convenient for data exchange with microcomputer, PLC, etc., which is a high performance automation instrument and suitable for modern power supply and distribution systems such as industrial and mining enterprises, civil buildings, and building automation.
