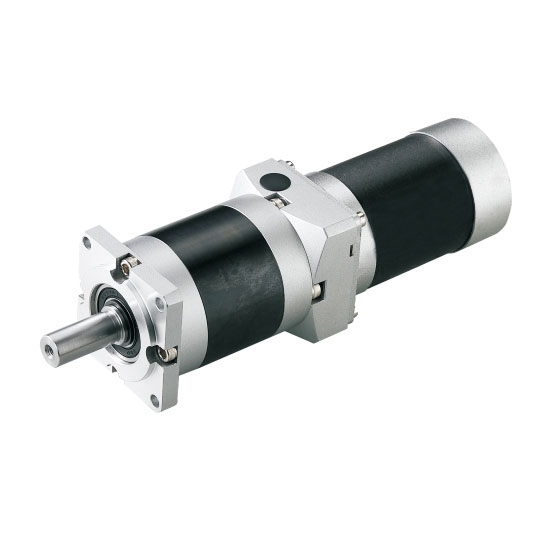

100W three phase 12V/24V/36V/48V brushless DC motor and a planetary gearbox are a planetary gear motor for electric vehicle. Rated torque 0.32Nm, peak torque 0.96Nm, 3000rpm rated speed, high operating efficiency, multiple reduction ratio options.

Features:

• 12V, 24V, 36V, 48V DC are available.
• The planetary gearbox ratio is up to 250:1.
• Power, voltage, speed, shaft, motor length and lead can be customized.
• BLDC motor with a planetary gearbox has low power consumption, high efficiency and longer battery life.
• Planetary gear motor provides high torque at low speeds.
• Easy for speed adjustment and reversible direction.

Specifications:

Note: If you would like CAD drawings of the motor and planetary gearbox, please contact us.

Speed-torque curve

• Instantaneous maximum torque line
  The maximum torque momentarily impacts the load when the motor is started.
  Beyond this torque, the over-current protection of the driver will cause the motor to stop.
• Short time operation area
  The motor can run at a short time within this torque range at different speeds.
  If the operation time is too long, the motor will generate heat, which may cause the motor to stop or burn.
• Rated operating torque line
  The rated torque of motor running at different speeds, and the motor can run for a long time at this torque.
• Continuous operating area
  When the motor rotates at different speeds, it runs continuously in this corresponding zone.

Tips: Ways to prolong the service life of planetary gear motors

The planetary gear motor should regularly scrub the equipment and its lubrication device, strictly abide by the operating procedures, and eliminate the small defects of the reducer in time, such as loose parts. Fill in the operation records in accordance with the regulations and strictly implement the shift shift system. Gearbox cleaning machine is very effective for reducer.
Pay attention to the planetary gear motor under normal load, whether there is abnormal vibration phenomenon in the inspection. Each bearing temperature instrument indicates whether it is normal, whether the oil supply pressure and flow rate of the lubrication system meet the requirements, whether the equipment has abnormal noise, and whether the mechanical and electrical parts have peculiar smell.
The planetary gear motor will be shut down for a long time. Pay attention to the dust and rust, and start the reducer at least once a month for about 1 hour each time, and observe the rust of the gear and bearing bracket through the observation window and side cover Condition.
