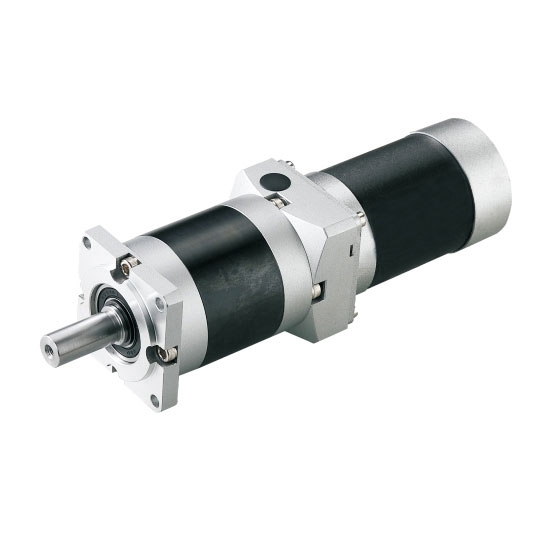

150 W DC Planetary Gear Motor, 12V/24V/48V

0 reviews • Write a review

from

$463.79

Ex Tax: $463.79

Stock: In Stock
Model: RDDLZ-GEAR-P150
Weight: 1.00
SKU: RDDLZ-GEAR-P150

Available Options

Short Description

Gear Ratio

Voltage (DC)

With Brake

Controller for 24V Motor

Controller for 36V Motor

Controller for 48V Motor

Controller for 12V Motor

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

150 watt planetary gear motor with 12V/24V/36V/48V DC power supply, 0.48Nm rated torque, 3000rpm and peak torque up to 1.43Nm, high gear speed is available. brushless designed for electrical car and industrial machines.

Features:

12V, 24V, 36V, 48V DC are available.
The planetary gearbox ratio is up to 250:1.
Power, voltage, speed, shaft, motor length and lead can be customized.
BLDC motor with a planetary gearbox has low power consumption, high efficiency and longer battery life.
Planetary gear motor provides high torque at low speeds.
Easy for speed adjustment and reversible direction.

Specifications:

Motor Model	D2BLD150-12A-30S	D2BLD150-24A-30S	D2BLD150-36A-30S	D2BLD150-48A-30S
Motor Type	BLDC Motor
Power	150W
Voltage	12V DC	24V DC	36V DC	48V DC
Rated Current	15.63A	7.81A	5.21A	3.91A
No Load Current	＜1.5A	＜1.0A	＜0.8A	＜0.6A
No Load Speed	3300 rpm
Rated Speed	3000 rpm
Rated Torque	0.48 N·m
Peak Torque	1.43 N·m
Motor Dimension	57mm/60mm
Shaft Diameter	14mm
Construction	Permanent Magnet
Direction of Rotation	CW/CCW
Certificate	CCC, CE, ROSH, LVD, EMC
Recommended drive model	BLDC-100A	BLD-300B	BLD-300B	BLD-300B
Gear Ratio	4, 5, 7, 10, 16, 20, 25, 28, 35, 40, 50, 70, 80, 100, 125, 140, 175, 200, 250
What Parameters of RDDLZ Planetary Gear Motor Can Be Customized?
Power	Yes
Voltage	Yes
Speed	Yes
Shaft	Yes
Motor Length	Yes
Motor Lead	Yes

Note: If you would like CAD drawings of the motor and planetary gearbox, please contact us.

Speed-torque curve

Instantaneous maximum torque line
The maximum torque momentarily impacts the load when the motor is started.
Beyond this torque, the over-current protection of the driver will cause the motor to stop.
Short time operation area
The motor can run at a short time within this torque range at different speeds.
If the operation time is too long, the motor will generate heat, which may cause the motor to stop or burn.
Rated operating torque line
The rated torque of motor running at different speeds, and the motor can run for a long time at this torque.
Continuous operating area
When the motor rotates at different speeds, it runs continuously in this corresponding zone.

Tips: Notice for Usage

Please don't use motor out of the range of nameplate of gear box and motor and the specification of product catalogue, avoiding getting an electric shock, hurting or damaging the device.
Please do not put your fingers and things into the opening part of gear or motor ,in order to prevent getting and electric shock,hurting,catching a fire of damaging device etc.
Please do not use the Injured gear head of motor, in prder to orevent hurting,catching a fire etc.
Please do not put off thenameolate.
If the products are reformed by the customers personally, it no longer belongs to the guarantee scope, and our company doesn’t undertake any responsibility.
When you move it, if it shed off or tilt to one side, it is very dangerous, please pay more attention.
Please must not put the flammable thing near the gear head and motor, in order to prevent catching a fire.
