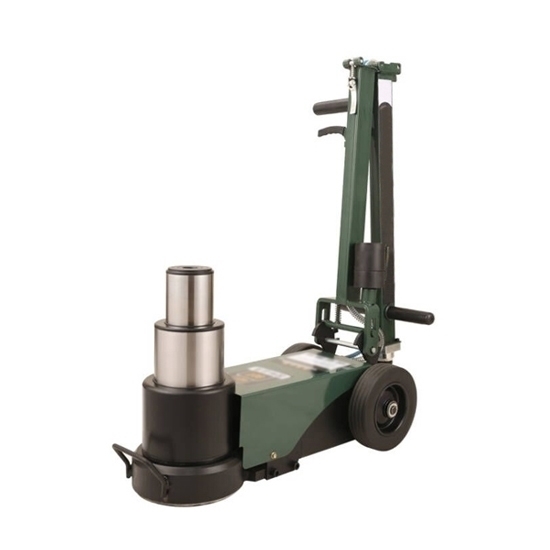

120 Ton Hydraulic Floor Jack

0 reviews • Write a review

from

$1,523.59

Ex Tax: $1,523.59

Stock: In Stock
Model: RDDLZ-HFJ-120T
Weight: 1.00
SKU: RDDLZ-HFJ-120T

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Air powered hydraulic floor jack is a mechanical device for lifting heavy loads, such as vehicles, using hydraulic power. The hydraulic car jack is positioned under the load, and by pumping the handle, hydraulic pressure is generated, causing the lifting arm to rise, thereby lifting the load off the ground.

Specification

Model: RDDLZ-HFJ-120T
Lifting Weight: 60 Ton/ 120 Ton
Minimum Altitude: 205mm
Maximum Height: 380mm
Base Diameter: 250mm
Outer Cylinder Diameter: 215mm
Middle Cylinder Diameter: 160mm
Small Cylinder Diameter: 110mm
Air Pressure: Above 8 kg
Top Length: 75mm
Top Width: 33mm
Pole Net Length: 1250mm
Ground Clearance: 1500mm
Net Weight: 78kg

Note: After the second section is raised, the height increases, and the load capacity halves.

Load Capacity

Section 1: The load capacity is 120 Ton.
Section 2: The load capacity is 60 Ton.

Applications

Tips: Which valve is used in hydraulic floor jack?

The hydraulic floor jack commonly utilizes a specific type of valve known as a release valve or pressure relief valve. This valve is a crucial component of the jack's hydraulic system, responsible for controlling the flow of hydraulic fluid and maintaining the desired pressure within the system. The release valve is typically located near the hydraulic cylinder and is designed to release excess pressure when the jack reaches its maximum lifting capacity or when the operator wants to lower the jack.

The release valve consists of a spring-loaded mechanism that opens when the pressure exceeds a predetermined limit, allowing the hydraulic fluid to flow back into the reservoir and reducing the pressure in the system. This action enables the jack to safely release the load or lower the lifted object. The valve may also incorporate additional features such as a control lever or knob for manual adjustment of the pressure release point.

Overall, the release valve is a vital part of the hydraulic floor jack, ensuring safe and controlled lifting and lowering operations by regulating the hydraulic pressure within the system.
