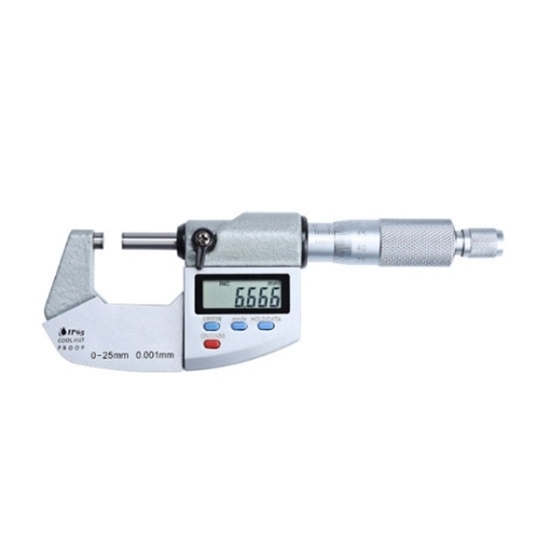

0-1" Range Digital Micrometer, 0.00005 Inch Accuracy

0 reviews • Write a review

from

$139.62

Ex Tax: $139.62

Stock: In Stock
Model: RDDLZ-DM-N7025
Weight: 1.00
SKU: RDDLZ-DM-N7025

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Waterproof electronic micrometer with high definition LCD, measuring range 1-2", accuracy 0.001mm, digital micrometer with ABS point measurement, data hold function, 3V high capacity lithium battery for digital micrometer measurement to provide lasting power.

Specification

Model	RDDLZ-DGN7-025
Digital Display Scale	Digital display + scale
Range	0~25mm (0~1 inch)
Resolution	0.001 mm (0.00005 inch)
Accuracy	±0.002mm (0.00005 inch)
Metric to English Conversion	Yes
Home Position Measurement	Yes
Data Hold	Yes
Power Supply	LR44 button cell
Out of Tolerance Alert	Yes
Scale Body Quality	High quality steel
Product Process	Surface spraying
Scale Process	Laser scale
Packaging	Drop-proof blow mold box

Set zero

Wipe the probe measuring.
Probe closure.
Lock the screw with the stopper.
Use a wrench to pull the fixing sleeve until the zero line is aligned.

Details

Tips: What is a digital micrometer?

A digital micrometer is a kind of length measuring tool with higher accuracy than calipers because it is measured by screw rotation, so the measuring range is only 25mm, so the micrometer also has a variety of length measuring specifications 0 ~ 25mm, 25 ~ 50mm, 50 ~ 75mm, 75 ~ 100mm, 100 ~ 125mm and so on several kinds. Digital micrometers can display accurate measurements in small ranges. Advanced and more accurate models can easily measure distances down to 0.001mm. This accuracy when measuring small objects translates into accuracy for the entire project being carried out.
