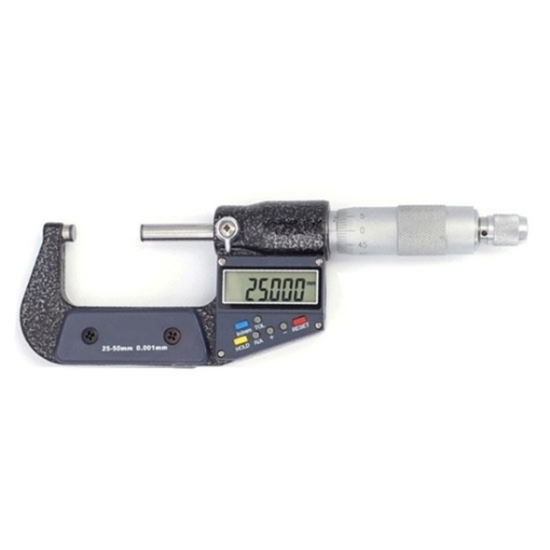

1-2" Range Digital Micrometer, 0.00007 Inch Accuracy

1-2" Range Digital Micrometer, 0.00007 Inch Accuracy
1-2" Range Digital Micrometer, 0.00007 Inch Accuracy
0 reviews • Write a review
from
$178.94
Ex Tax: $178.94
  • Stock: In Stock
  • Model: RDDLZ-DM-N750
  • Weight: 1.00
  • SKU: RDDLZ-DM-N750

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Electronic outside micrometer range 1" to 2" (25 to 50mm), digital micrometer with high definition LCD and scale display, accuracy 0.00007", fine adjustment ratchet helps reduce resistance to use.

Specification

ModelRDDLZ-DGN7-2550
Digital Display ScaleDigital display + scale
Range25~50mm (1~2 inch)
Resolution0.001 mm (0.00005 inch)
Accuracy±0.002mm (0.00007 inch)
Metric to English ConversionYes
Home Position MeasurementYes
Data HoldYes
Power SupplyLR44 button cell
Out of Tolerance AlertYes
Scale Body QualityHigh quality steel
Product ProcessSurface spraying
Scale ProcessLaser scale
PackagingDrop-proof blow mold box



Set zero



  1. Wipe the probe measuring.
  2. Probe closure.
  3. Lock the screw with the stopper.
  4. Use a wrench to pull the fixing sleeve until the zero line is aligned.

Details

Tips: inside diameter micrometer vs. outside diameter micrometer?

The difference is that the inside diameter micrometer is to measure the diameter of the inner hole, and the outside diameter micrometer is to measure the diameter of the outer circle, but also can measure the thickness of the inside diameter micrometer for the precision measurement of internal dimensions (divided into monoblock type and connecting rod )

The correct measurement method: inside diameter micrometer in the measurement and its use of the largest size of the rod and its micrometer head connected, in turn, down to the measurement contact, with the inside diameter of the ruler to measure the hole will be measured contact measuring surface support in the measured surface to adjust the differential cylinder so that the differential cylinder side of the measuring surface in the radial section of the hole swing to find the minimum size, and then tighten the set screw to remove and read, there is no tightening screw directly There are also direct readings without tightening the screw.
