Isolated DC-DC Converter, 220V To 24V

0 reviews • Write a review

from

$147.69

Ex Tax: $147.69

Stock: In Stock
Model: RDDLZ-IDCDC-22024
Weight: 1.00
SKU: RDDLZ-IDCDC-22024

Available Options

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

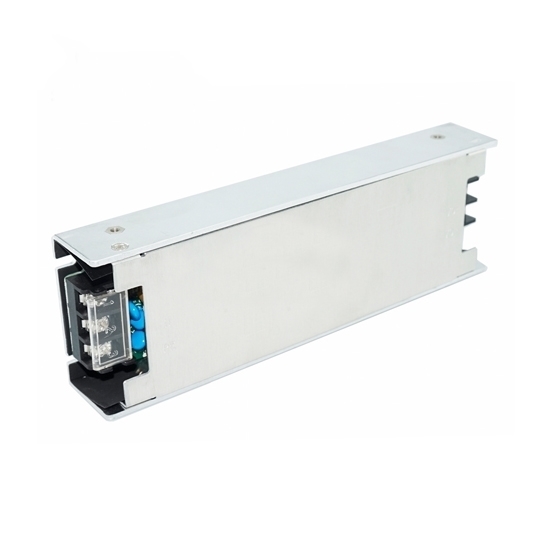

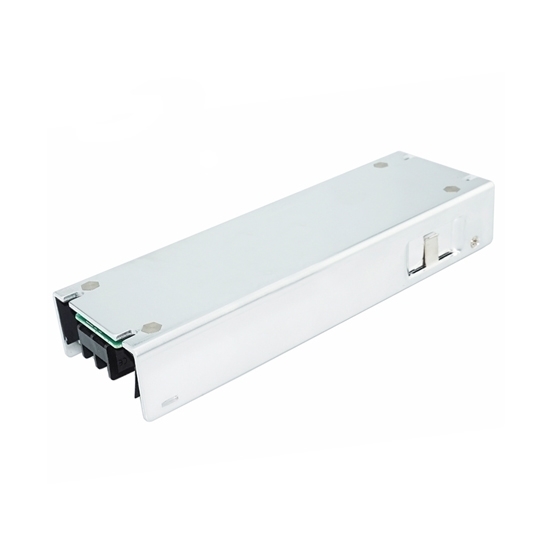

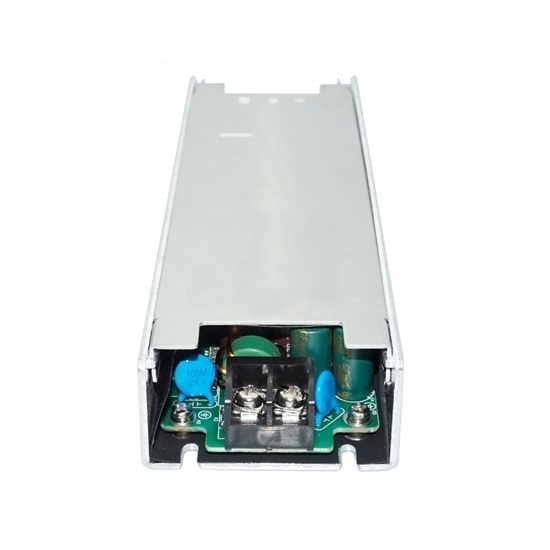

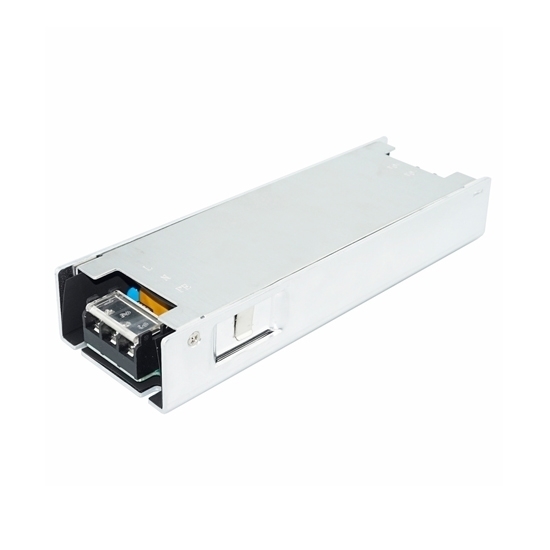

220V to 24V isolated DC-DC converter is a step down converter that uses a synchronous rectification technology, and features high efficiency and power density. It provides that rated output voltage of 24V and the maximum output current of 12.5A.

Features

100% full power, high stability output.
100% full load aging test.
100% complete isolation of input and output, safe and stable.
Aluminum alloy shell, small size and easy installation.
Built-in overcurrent, over temperature, short circuit, reverse connection and other protection functions.
Wide voltage 127-380VDC input, up to 96% conversion efficiency.
Isolated DC-DC buck converter is widely used in artificial intelligence, communication base stations and industrial control, etc.

Isolated DC-DC Buck Converter Specification

Model: RDDLZWGI25-220S24L
Input Rated Voltage: 220V DC
Input Voltage Range: 127-380V DC
Conversion Efficiency: 95%
Output Voltage: 24V DC
Output Current: 12.5A
Output Power: 300W
Voltage Regulation: < 1%
Load Regulation: < 2%
Ripple & Noise: 300mVp-p
Load Loss: 20mA
Operating Temperature: -40°C~ +60°C
Input Wiring Type: Terminal
Output Wiring Type: Terminal
Heat Dissipation Method: Natural Heat Dissipation of the Shell
Dimensions: 185*60*30mm
Weight: 0.5kg

Dimension (Unit: mm)

Tips: What are the isolated DC-DC converter used for?

Isolated DC-DC converters are widely used in electric vehicles, electric cleaning vehicles, electric motorcycles and other electric vehicle power conversion systems, and are also used in mobile phones, MP3, digital cameras, portable media players and other products.
