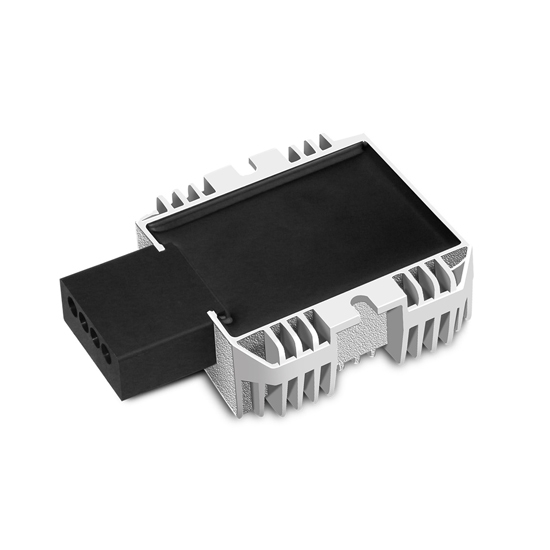

Isolated DC-DC Converter, 24V To 5V

0 reviews • Write a review

from

$85.69

Ex Tax: $85.69

Stock: In Stock
Model: RDDLZ-IDCDC-2405
Weight: 1.00
SKU: RDDLZ-IDCDC-2405

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

RDDLZ isolated DC-DC converter is a step down converter that uses a synchronous rectification technology, and features high efficiency and power density. It provides that rated output voltage of 5V and the maximum output current of 20A.

Features

100% full power, high stability output.
Isolated DC-DC converter uses high-quality thermal conductive silicone potting, waterproof, dustproof, shockproof, with die-casting aluminum alloy shell, small size, and easy installation.
Wide voltage input, built-in overcurrent, overvoltage, overtemperature, short circuit and other automatic protection functions.
CE, RoHS certification, up to 100,000 hours of service life.

Isolated DC-DC Buck Converter Specification

Model	RDDLZWGI20-24S05M (Click to view more specs)
Input	Rated voltage	24V
	Voltage range	18-36V
	Efficiency	90%
Output	Voltage	5V
	Max. rated current	20A
	Max. rated power	100W
	Voltage regulation	±2%
	Load regulation	±2%
	No load loss	70mA
	Ripple & noise	50mV
Environment	Working temperature	-40 ~ +80℃
	Working humidity	5% ~ 95%RH
	Storage temperature	-55 ~ +100℃
Function	Short circuit protection	NO
	Over current protection	YES
	Waterproof	IP67
	Over temperature protection	YES
	Over-voltage protection	YES
Mechanical	Weight	250g
	Size	747429.5mm

Dimensions (Unit: mm)

Tips: What is an isolated DC-DC converter?

An isolated DC-DC converter is an electrical device used to convert one direct current (DC) voltage level to another while providing electrical isolation between the input and output circuits. This isolation is essential to protect sensitive components, ensure safety, and reduce electrical noise.

The converter typically consists of two main stages: the primary side and the secondary side. On the primary side, it features an input voltage and a switching circuit (often a transformer) that steps up or down the voltage. This switching action generates an alternating current (AC), which is then rectified back to DC on the secondary side. Isolation is achieved through the physical separation of the windings in the transformer, preventing a direct electrical connection between the input and output.

Isolated DC-DC converters are commonly used in various applications, including power supplies for electronics, renewable energy systems, electric vehicles, and industrial equipment, where voltage transformation and electrical isolation are necessary for proper functioning and safety.
