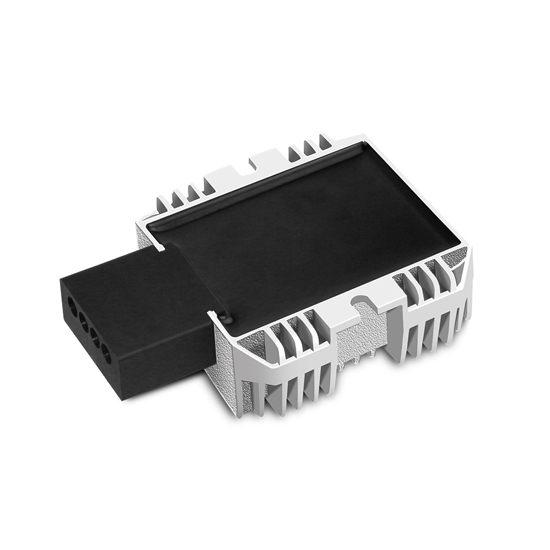

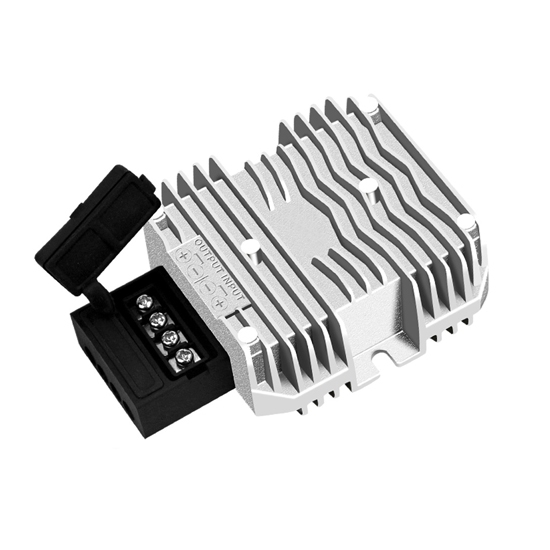

Isolated DC-DC Converter, 24V To 12V

0 reviews • Write a review

from

$85.69

Ex Tax: $85.69

Stock: In Stock
Model: RDDLZ-IDCDC-2412
Weight: 1.00
SKU: RDDLZ-IDCDC-2412

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

RDDLZ isolated DC-DC converter with 24V rated input voltage, is a step down converter that uses a synchronous rectification technology, and features high efficiency and power density. It provides that rated output voltage of 12V and the maximum output current of 10A.

Features

100% full power, high stability output.
Isolated DC-DC converter uses high-quality thermal conductive silicone potting, waterproof, dustproof, shockproof, with die-casting aluminum alloy shell, small size, and easy installation.
Wide voltage input, built-in overcurrent, overvoltage, overtemperature, short circuit and other automatic protection functions.
CE, RoHS certification, up to 100,000 hours of service life.

Isolated DC-DC Buck Converter Specification

Model	RDDLZWGI10-24S12M (Click to view more specs)
Input	Rated voltage	24V
	Voltage range	18-36V
	Efficiency	92%
Output	Voltage	12V
	Max. rated current	10A
	Max. rated power	120W
	Voltage regulation	±2%
	Load regulation	±2%
	No load loss	70mA
	Ripple & noise	50mV
Environment	Working temperature	-40 ~ +80℃
	Working humidity	5% ~ 95%RH
	Storage temperature	-55 ~ +100℃
Function	Short circuit protection	NO
	Over current protection	YES
	Waterproof	IP67
	Over temperature protection	YES
	Over-voltage protection	YES
Mechanical	Weight	250g
	Size	747429.5mm

Dimensions (Unit: mm)

Tips: How to choose an isolated DC-DC converter?

Choosing an isolated DC-DC converter requires careful consideration of several key factors.

Input and Output Voltage: Ensure the converter can handle your input voltage range and provide the desired output voltage.
Power Rating: Select a converter with sufficient power capacity to meet your load requirements, considering efficiency.
Isolation Voltage: Determine the required isolation level to protect sensitive components and ensure safety.
Topology: Pick the appropriate converter topology (e.g., flyback, forward, or push-pull) based on your application's specific needs, such as efficiency, cost, and size.
Efficiency: Opt for a converter with high efficiency to minimize power losses and reduce the need for cooling.
Operating Environment: Consider the temperature, humidity, and other environmental conditions where the converter will operate.
Protection Features: Look for converters with built-in protections like over-current, over-voltage, and thermal shutdown.
Size and Form Factor: Ensure the converter fits within the available space and is compatible with your layout.
Cost and Reliability: Balance the cost with the desired reliability and quality.
Regulatory Compliance: Verify that the converter meets safety and certification standards for your industry.

Taking these factors into account will help you choose the right isolated DC-DC converter for your application.
