8 Inch (200mm) Inline Centrifugal Duct Fan

0 reviews • Write a review

from

$589.69

Ex Tax: $589.69

Stock: In Stock
Model: RDDLZ-ICFAN-200
Weight: 1.00
SKU: RDDLZ-ICFAN-200

Available Options

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

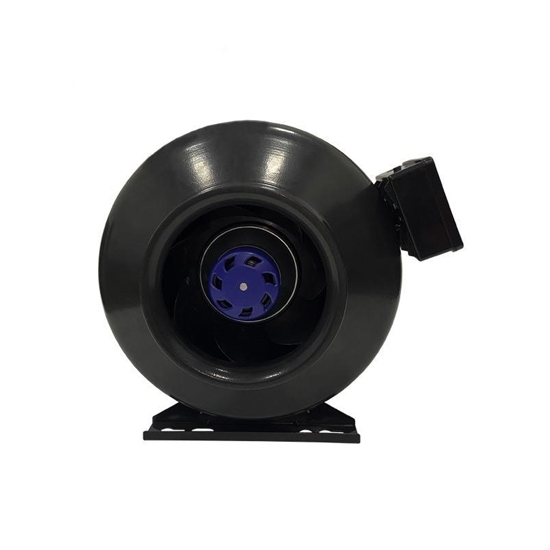

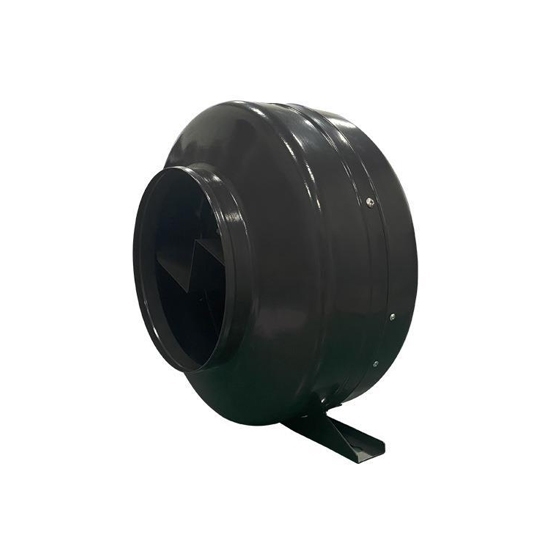

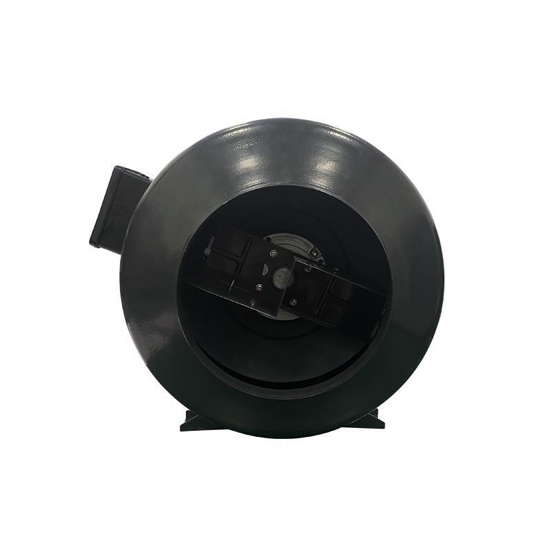

RDDLZ 8 inch (200mm) inline centrifugal duct fan is a ventilation blower commonly used in residential, commercial, and industrial applications. Designed to be installed within ductwork, this in line centrifugal fan efficiently moves air through the system, improving air circulation and quality.

Specification

Model	RDDLZ-QL-P200B-EC-00
Operating Voltage	230V AC
Frequency	50Hz/60Hz
Max. Power	170W
Motor Power	170W
Max. Current	1.1A
Noise	71dB(A)
Speed	2700rpm
Impeller Diameter	200mm (8 inch)
Air Volume	1150m³/h (680 cfm)
Speed Regulation	0~10VDC / PWM
Impeller Material	Plastic
Rotation Direction	Clockwise CW (from the rotor end)
Operation Mode	S1
Bearing	Ball Bearing
Operating Temperature	-25~60℃
Motor Protection	Thermal Protection, Soft Start Protection, Stall Protection
Performance	Low Noise Fan
Protection Level	IP55
Insulation Level	B
Certificate	CCC, RoHS

Dimension (Unit: mm)

Performance Curve

Wiring

Tips: What is the noise level of an inline centrifugal duct fan?

The noise level of an inline centrifugal duct fan varies depending on factors such as the fan's size, design, and operating speed. Generally, these fans are designed to operate quietly, with noise levels typically ranging from 30 to 80 decibels (dB). Fans at the lower end of this range are comparable to the sound of a quiet conversation or a library, making them suitable for residential and office environments where noise reduction is important.

Higher-capacity centrifugal fans used in industrial or commercial settings may produce more noise, especially at higher speeds, but are often equipped with noise-dampening features such as insulated housings and rubber mounts to minimize vibration and sound transmission. Additionally, installing the fan within ductwork further reduces perceived noise.
