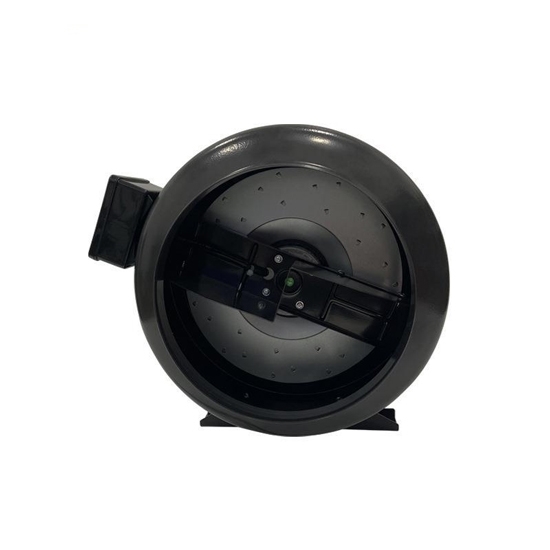

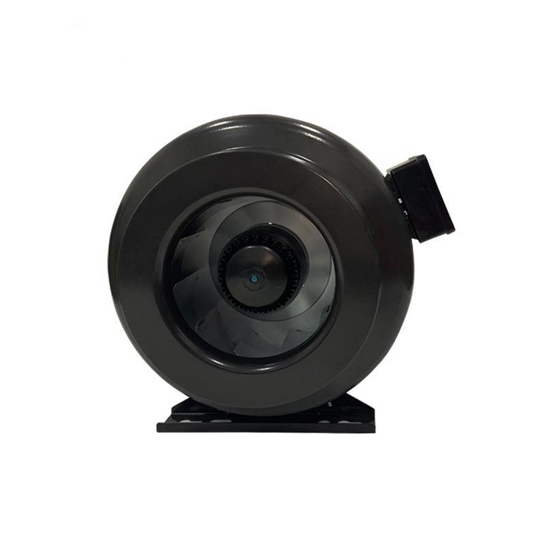

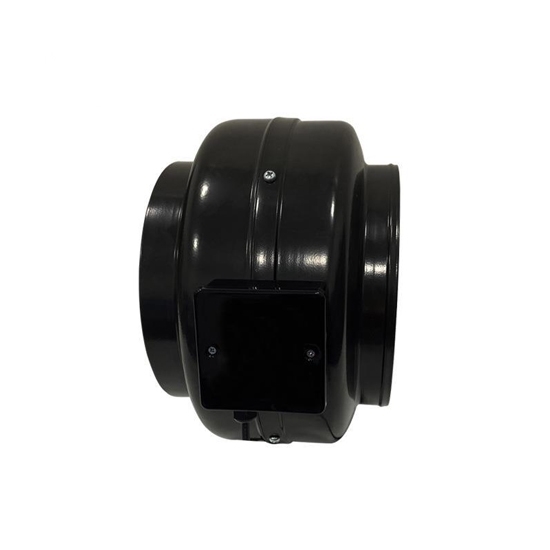

10 Inch (250mm) Inline Centrifugal Duct Fan

0 reviews • Write a review

from

$494.79

Ex Tax: $494.79

Stock: In Stock
Model: RDDLZ-ICFAN-250
Weight: 1.00
SKU: RDDLZ-ICFAN-250

Available Options

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

10 inch (250mm) centrifugal duct fan features a centrifugal design, where the air enters the fan wheel and is expelled, providing high pressure and efficient airflow. Inline centrifugal exhaust blower is typically installed within the ductwork, which is widely used for applications requiring powerful air movement over long distances, such as in commercial buildings, industrial facilities, and large residential properties.

Specification

Model	RDDLZ-QL-P250D-2E-A01-01
Operating Voltage	230V AC
Frequency	50Hz
Max. Power	165W
Motor Power	85W
Max. Current	0.8A
Noise	71dB(A)
Speed	2615rpm
Impeller Diameter	250mm (10 inch)
Air Volume	980m³/h (580 cfm)
Speed Regulation	0~10VDC / PWM
Impeller Material	Metal
Rotation Direction	Clockwise CW (from the rotor end)
Operation Mode	S1
Bearing	Ball Bearing
Operating Temperature	-25~60℃
Motor Protection	Thermal Protection, High and Low Voltage Protection
Performance	Low Noise Fan
Protection Level	IP32
Insulation Level	F
Certificate	CCC, RoHS

Dimension (Unit: mm)

Performance Curve

Wiring

Tips: What is an inline centrifugal duct fan?

An inline centrifugal duct fan is a ventilation device used within ductwork to enhance air movement in HVAC systems. These fans utilize a centrifugal mechanism, where air enters through the fan wheel's center and is expelled perpendicularly, resulting in high pressure and efficient airflow. This design is particularly effective for moving air over long distances, making it suitable for commercial, industrial, and large residential applications.

Typically, inline centrifugal duct fans are compact, allowing for installation directly within ducts, which helps reduce noise and save space. They are known for their durability and low maintenance, often featuring variable speed controls and energy-efficient motors to adapt to various ventilation requirements while conserving energy. These fans are crucial for maintaining proper air circulation, improving indoor air quality, and ensuring comfort in large or complex building environments.
