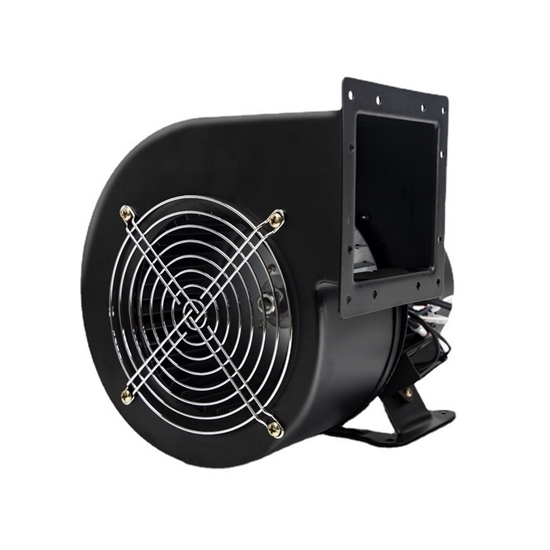

120W low price centrifugal blower fan for sale, its rated voltage is 0.55A at 220V and 0.25A at 380V. With its advanced impeller design and durable construction, the RDDLZ 120W centrifugal blower provides reliable performance in a variety of environments.

Specification

Features

• The 120W centrifugal fan uses pure copper coils for low losses, high efficiency, and fast speed.
• Impeller dynamic balance is precisely calibrated to keep the blower running smoothly and prevent the centrifugal blower from running out of control during operation.
• The carbon steel casing protection grid effectively prevents accidental debris on both sides of the blower, improving the safety of the centrifugal blower during operation.
• RDDLZ centrifugal fans can be installed freely at 360° and can be hung in a positive direction.

Dimension (Unit mm)

Installation

Details

Applications

Centrifugal fans are commonly used in various industrial applications such as HVAC systems, chemical processing, power generation, wastewater treatment, and pneumatic conveying systems. They are also utilized in the manufacturing of materials such as plastics, paper, and cement. Additionally, centrifugal blowers can be found in applications related to food processing, mining, and automotive manufacturing.

Tips: What is a centrifugal blower?

A centrifugal blower, also known as a centrifugal fan, is a type of mechanical device used to move air or other gases in a variety of applications. It operates by using a rotating impeller or blade wheel to create a flow of air perpendicular to the axis of rotation, which is then directed through a series of ducts or chambers to the desired location.

The impeller or blade wheel of a centrifugal blower typically consists of a number of curved blades that are mounted on a hub, and the rotation of the impeller generates centrifugal force that moves the air or gas outward from the center of the impeller. This force creates a high-pressure zone near the outer edges of the impeller, and the air or gas is then directed through a volute, or curved housing, which increases the velocity and pressure of the air or gas.

Centrifugal blowers are used in a variety of industrial and commercial applications, including HVAC systems, ventilation systems, air conditioning units, and pneumatic conveying systems. They are often preferred over axial fans because they can generate higher pressures and are better suited for moving air or gas through ducts or other confined spaces.
