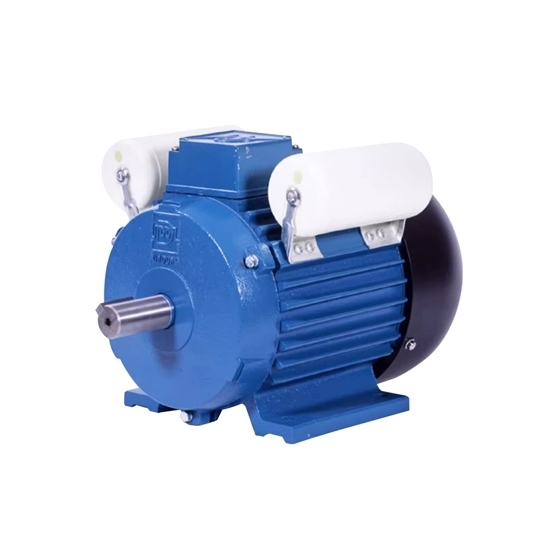

7.5 Hp (5kW) 220V Single Phase AC Induction Motor

0 reviews • Write a review

from

$1,802.69

Ex Tax: $1,802.69

Stock: In Stock
Model: RDDLZ-SPM-5500
Weight: 1.00
SKU: RDDLZ-SPM-5500

Available Options

Short Description

Voltage (V)

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

7.5 hp single phase motor for sale online. It has 3000rpm speed, and operates at 200V/110V/230V/240V AC 50/60 Hz. 5kW single phase induction motor provides start torque by a start capacitor and run capacitor. High efficiency asynchronous motor, suitable for drills, air conditioners, compressors, pumps, cranes, garage door opening and closing systems.

Specifications

Model	RDDLZ-YL132M-4
Rated Output	5kW (≈7.5hp)
Efficiency	87%
Power Factor	0.95 COSφ
Rated Speed	1450rpm
Rated Current	13.1A
Pole	4 Pole
Voltage	220V AC 50Hz (Default), other customizations can be customized.
Tmax/Tn	1.8 times
Ts/Tn	1.7 times
ls/ln	227 times

Note: Please contact us to confirm the drawing before placing an order.

Details

Tips: How to choose the right single phase induction motor?

Power

Consider voltage and other factors. If the line is far away, the single-phase motor should choose low power.

Rotation speed

Generally speaking, the performance of a high-speed motor is better than that of a low-speed motor.

Noise and vibration

The quality of a single-phase motor can be roughly judged based on the noise. The noise from high-quality motors is small and not harsh.

Running hot

Normally, single-phase motors will generate heat during operation, which is allowed.
