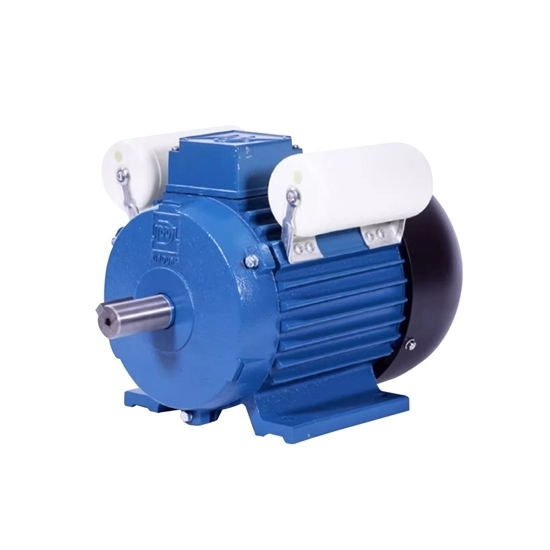

1/2 Hp (0.37kW) 220V Single Phase AC Induction Motor

0 reviews • Write a review

from

$304.15

Ex Tax: $304.15

Stock: In Stock
Model: RDDLZ-SPM-370
Weight: 1.00
SKU: RDDLZ-SPM-370

Available Options

Short Description

Voltage (V)

Speed

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

370W 0.5 hp single phase motor, is also called an asynchronous motor. It has 1500rpm/3000rpm speed, 220V/110V/230V/240V voltage, and works at 50Hz/60Hz frequency. 1 phase motor is available with two capacitors, offers zero starting torque at rest, and supplies for homes, offices, stores and small non-industrial companies.

Specifications

Model	RDDLZ-YL711-2	RDDLZ-YL712-4
Rated Output	0.37kW (0.5hp)
Efficiency	67%	62
Power Factor	0.92 COSφ
Rated Speed	2800rpm	1400rpm
Rated Current	2.61A	1.9
Pole	2 Pole	4 Pole
Voltage	220V AC 50Hz (Default), other customizations can be customized.
Tmax/Tn	1.8 times
Ts/Tn	1.8 times
ls/ln	16 times	12 times

Dimension (Unit: mm)

Frame Size	Mounting Dimension									Overall Dimension
Frame Size	A	B	C	D	E	F	G	H	K	AB	AC	AD	AE	HD	L
71	112	90	45	14	30	5	11	71	7	145	145	140	105	180	255

Details

Tips: What is a Single Phase Induction Motor？

A single phase induction motor generally refers to a low-power asynchronous motor powered by a single-phase AC power supply. It usually has two-phase windings on the stator, and the rotor is of ordinary squirrel cage type. The distribution of the two-phase windings on the stator and the different power supply conditions can produce different starting characteristics and operating characteristics.
