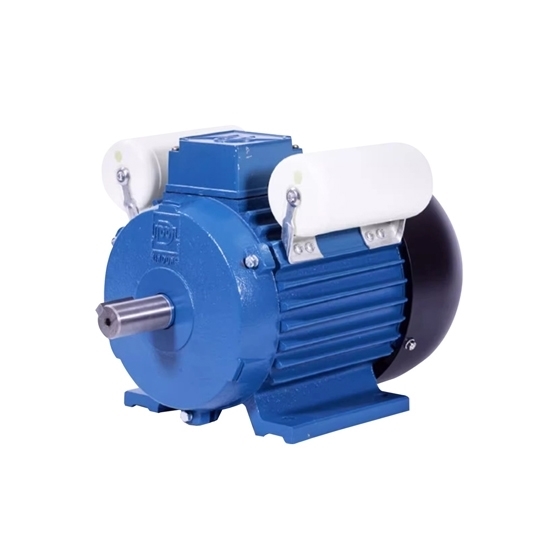

1.5 Hp (1.1kW) 220V Single Phase AC Induction Motor

0 reviews • Write a review

from

$433.69

Ex Tax: $433.69

Stock: In Stock
Model: RDDLZ-SPM-1100
Weight: 1.00
SKU: RDDLZ-SPM-1100

Available Options

Short Description

Voltage (V)

Speed

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Encomical 1.5 hp single phase induction motor for sale online. It is an asynchronous motor with a start capacitor and run capacitor, offers starting torque at rest. It features 1100W power, frequency 50Hz/60Hz, voltage 110V/230V/240V and 1500rpm/3000rpm speed, suitable for drills, air conditioners, compressors, pumps, cranes, garage door opening and closing systems.

Specifications

Model	RDDLZ-YL802-2	RDDLZ-YL90S-4
Rated Output	1.1kW (1.5hp)
Efficiency	75%	73%
Power Factor	0.95 COSφ
Rated Speed	2800rpm	1420rpm
Rated Current	6.7A	6.9A
Pole	2 Pole	4 Pole
Voltage	220V AC 50Hz (Default), other customizations can be customized.
Tmax/Tn	1.8 times
Ts/Tn	1.8 times	1.7 times
ls/ln	40 times	40 times

Dimension (Unit: mm)

Frame Size	Mounting Dimension									Overall Dimension
Frame Size	A	B	C	D	E	F	G	H	K	AB	AC	AD	AE	HD	L
80	125	100	50	19	40	6	15.5	80	10	160	165	150	120	200	295
90S	140	100	56	24	50	8	20	90	10	180	185	160	130	240	370

Details

Tips: The power supply of single phase induction motor works normally, but the motor cannot be started after power is on. Possible causes are:

Motor lead open circuit.
Open-circuit of main winding or auxiliary winding.
The centrifugal switch contact of single phase induction motor cannot be closed.
Capacitor open circuit.
The bearing is stuck.
Rotor and stator rubbing.
