1/2 Hp NEMA AC Induction Motor, Split Phase 115/230V, ODP/TEFC

0 reviews • Write a review

from

$505.40

Ex Tax: $505.40

Stock: In Stock
Model: RDDLZ-IM-RS124
Weight: 1.00
SKU: RDDLZ-IM-RS124

Available Options

Short Description

Enclosure Type

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

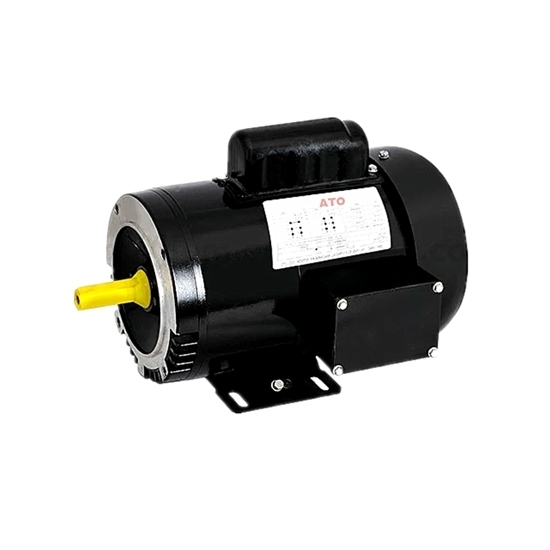

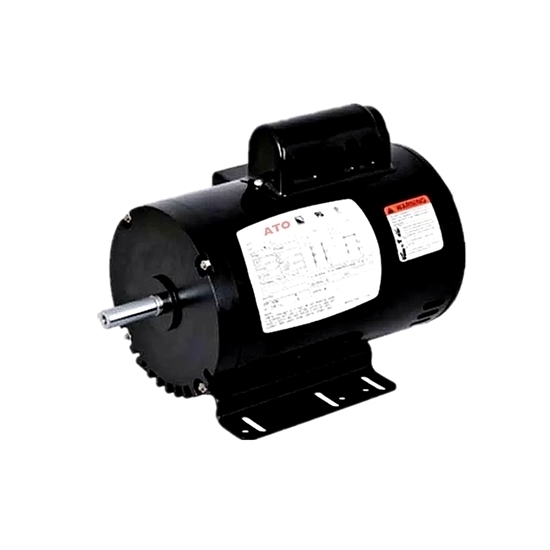

This RDDLZ small AC electric motor is a split phase, 60Hz, 1725rpm, 150/230V induction motor for general purpose applications such as pumps, fans, compressors. It has a heavy roll steel 56 frame construction for strength and durability and ODP/ TEFC enclosure for protecting from the outside environment.

1/2 hp Induction Motor Specification

Basics	Model	RDDLZRS124D02	RDDLZRS124T12
	Enclosure	ODP	TEFC
	Type	General Purpose Asynchronous Motor
	Item Weight	23 Ibs
	Motor Length	12.7 inch
	Frame	56 Frame
	Design	NEMA Design B
	Certification	CE, UL
	Motor Material	Roll Steel
Technical Parameters	Service Factor	1.25
	Horsepower	1/2 hp
	Rated Frequency	60 Hz
	Phase	Split Phase
	Pole	4 pole
	Voltage	115/230V AC
	Full Load Amps	6.4/3.2A
	Speed	1725 RPM
	Efficiency	69%
	Duty	Continuous
	Isulation Class	Class F
	Protection Class	IP54/ IP55
	Mounting Method	Foot Mounted
Environment	Ambient temperature	-15℃≤θ≤40℃
	Altitude	Altitude should be lower than 1000 meters above sea level

1/2 hp Induction Motor Dimension

Unit: inch

Frame Size	AB	BA	Max A	Max B	C	D	E	2F	H	N	N-W	O	P	R	S	U	Min V	Min ES	Min AA
56	5.6	2.75	6.5	4.2	11.4	3.5	2.44	3	0.34	2.4	1.88	6.7	6.45	0.517	0.188	0.625	1.5	1.41	1/2

NEMA AC Induction Motor Connection Diagram

Details

Tips: The Structural Difference between Synchronous Motor and Asynchronous Motor
Stator
The stator structural component of synchronous motor is basically the same as that of the asynchronous motor, performing the function of receiving, outputting electric energy and generating rotating magnetic field. Their structures and formats have no great differences. The stators of both synchronous motor and asynchronous motor are constituted by stator core of magnetic conductive, three-phase AC winding of electricity conducive, base of fixing iron core and end caps and so on.
Rotor
Asynchronous motor: The rotor is constituted by iron core and winding. The rotor is overlaid by steel sheets and then pressed and installed on the revolving shaft. It mainly constitutes the cage-type rotor and wire-wound rotor. Wire-wound asynchronous motor still has slip ring and electric brush structures.
Synchronous motor: The magnetic core of rotor is punched by steel plate into sheets and then overlaid. The magnetic core is jacked with field winding, which is wound by insulating copper wire. The permanent magnet of permanent magnet synchronous motor is the key element making it different from other motors.
