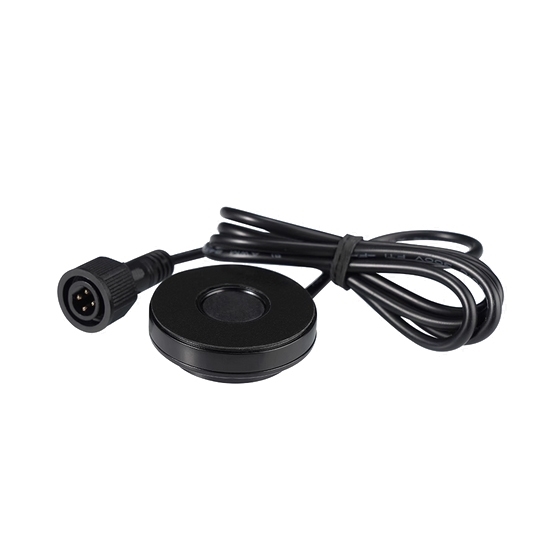

Non Contact Ultrasonic Oil Level Sensor, RS232/RS485/0-5V Output

0 reviews • Write a review

from

$167.69

Ex Tax: $167.69

Stock: In Stock
Model: RDDLZ-LEVS-U02
Weight: 1.00
SKU: RDDLZ-LEVS-U02

Available Options

Short Description

Output

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Buy an oil tank level sensor online. This oil level switch uses ultrasonic detection technology to non-contactly measure the level of oil and liquid substances, 12V-48V DC voltage and ≤25mA current, measuring distance 5-100cm, RS232/RS485/0-5V output.

Features

Non-contact measurement requires no modification to the container and features a waterproof metal housing with sealed electronics for reliable outdoor use.
This ultrasonic oil level switch supports DC 12–48V input and multiple output interfaces (RS232, RS485), suitable for various signal acquisition systems.
It utilizes high-frequency ultrasound for strong penetration, with built-in algorithms for filtering, environmental compensation, and millimeter-level precision.

Specifications

Model	RDDLZ-DYP-U02-V1.0
Working Current	≤25mA
Working Voltage	12V-48V DC
Measurement Angle	2-4°
Measurement Range	5-100cm, other ranges can be customized.
Output Mode (Optional)	RS232/RS485/0-5V Analog Output
Measurement Accuracy	≤5mm

Dimension (Unit: mm)

Applications

The non-contact ultrasonic oil level sensor is specially designed for monitoring fuel levels in vehicle tanks, measuring liquid levels in storage tanks, tracking water levels in containers, and gauging liquid gas during filling processes.

Tips: What is an ultrasonic oil level sensor?

The ultrasonic oil level sensor is a non-contact device that uses ultrasonic waves to measure the level of oil in a tank or container. It works by emitting high-frequency sound waves that reflect off the surface of the oil, and the sensor calculates the distance based on the time it takes for the echo to return. This technology allows for accurate, real-time monitoring without direct contact with the oil, making it ideal for use in harsh or hazardous environments.
