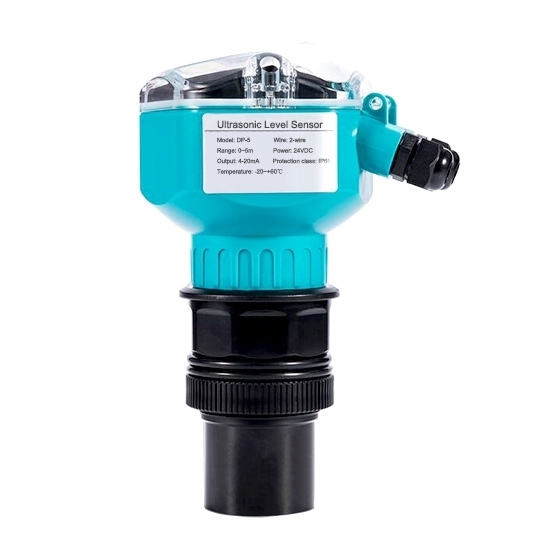

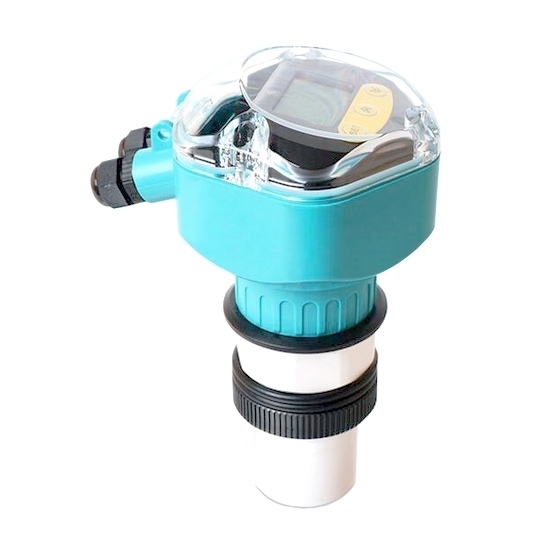

Ultrasonic Level Sensor For Water/Fuel/Oil/Powder, 0-60M

0 reviews • Write a review

from

$423.28

Ex Tax: $423.28

Stock: In Stock
Model: RDDLZ-LEVS-U60M
Weight: 1.00
SKU: RDDLZ-LEVS-U60M

Available Options

Short Description

Power Supply

Output Signal

Installation

Measuring Range

Probe Type

Relay Type

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Ultrasonic level sensor can be used for non-contact level measurement of various medium, such as liquid (water/fuel/oil), solid (metal or nonmetal), or powder (chemical materials), etc. The level sensor has maximum measuring range 0-60m, can transmit and output 4-20mA or RS485/232 signal to remote control system.

Specification

Model	RDDLZ-LEVS-DP
Shipping weight	2.5kg
Measuring range *	0-5m, 0-10m, 0-15m, 0-20m, 0-30m, 0-40m, 0-50m, 0-60m
Accuracy	0.5%FS
Resolution	3mm, or 0.1% (choose the higher value)
Display	LCD display
Output signal *	2-wire 4-20mA, 4-wire 4-20mA, RS485/232
Additional relay output *	2 relays AC 250V/8A, 2 relays DC 30V/5A
Power supply *	DC 24V, AC 220V±15% / 50Hz
Load	2-wire 4-20mA/250Ω, 4-wire 4-20mA/750Ω
Response time	500ms
Communication protocol	Our own protocol
Medium	Water, fuel, oil, metal, or other liquid/solid/powder
Environment temperature	LCD display: -20~+60℃ (-4~+140℉), ultrasonic probe: -20~+80℃ (-4~+176℉)
Working pressure	14.7 psi
Protection class	LCD display: IP65, ultrasonic probe: IP68
Electrical connection	2 waterproof connector M18*1.5mm
Installation*	Nut with thread M482mm, M602mm, M782mm or M1082mm (according to the measuring range and ultrasonic probe)
Probe type *	General probe, probe with PTFE shell, probe with small measuring blind zone
Algorithm	a. Algorithm of variable frequency Three adjustable emission frequency (low, medium and high) can meet the level measurements of different situations, such as sewage liquid level, acid and alkali liquid level, material level, etc. It can reduce the interference caused by the bubbles when mixing. b. Filtering algorithm (remove false echoes) The liquid level intelligent algorithm design effectively eliminates false echoes in actual measurement, improves signal-to-noise ratio, and guarantees actual liquid level measuring accuracy.
Function	Real-time monitoring and display 4 parameters: level (m), distance (m), current (mA) and temperature (℃).
Warranty	12 months

Note: * denotes optional parameters, you can select parameters in drop-down lists to finish your order. Some customizable parameters can't be selected from the lists directly, please contact customer service staff for further communication.

Dimension (unit: mm)

Wiring

Installation diagram

Details

Tips: What is ultrasonic level sensor?

The ultrasonic level sensor uses the time difference between the transmission and reception of sound waves and the propagation speed of sound waves to calculate the liquid level. The ultrasonic level sensor using non-contact measurement technology can be stably and reliably applied to continuous liquid level measurement in various open liquid/solid/powder tanks. Ultrasonic liquid level sensor is a very ideal measurement tool for corrosive, layered or acid-base wastewater. The media that can be measured by the ultrasonic level transmitter include industrial agents such as hydrochloric acid, sulfuric acid, hydroxide, waste water, resin, paraffin, mud, lye and bleach. It is often used in conjunction with other industrial equipment such as pressure transmitters and flow meters, and is an important part of automated process control systems.
RDDLZ ultrasonic level sensor has the following characteristics:

Simple structure, convenient reading, convenient installation and maintenance, high cost performance, low maintenance cost.
The use of corrosion-resistant materials, safe and clean, long life, high precision, stable and reliable.
Non-contact measurement is less affected by the viscosity and density of the liquid.
There are various ranges to choose from (0.5m~60m range), which can be applied in different industrial environments.
It has an RS-485 communication interface and adopts a special echo processing method to effectively avoid false echoes.
