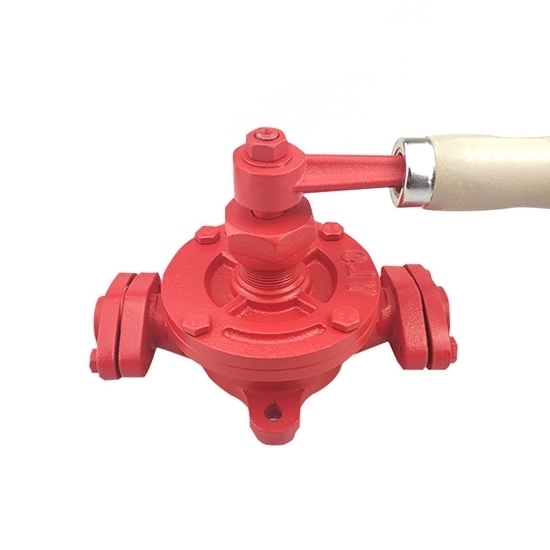

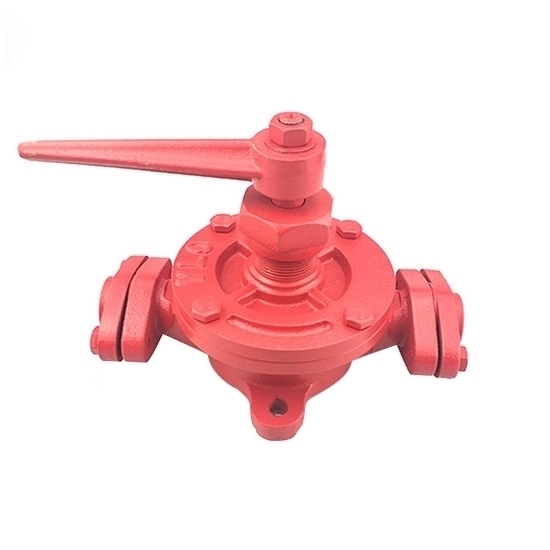

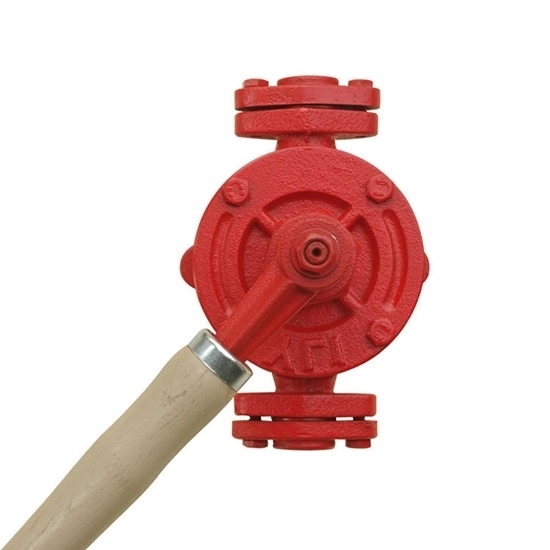

G3/4" Semi Rotary Hand Pump, 20 LPM

New

G3/4" Semi Rotary Hand Pump, 20 LPM

0 reviews • Write a review

from

$332.76

Ex Tax: $332.76

Stock: In Stock
Model: RDDLZ-SRHP-YL1
Weight: 1.00
SKU: RDDLZ-SRHP-YL1

Available Options

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

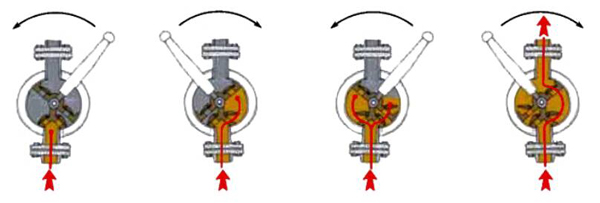

Semi rotary hand pump is a manually operated device used to transfer liquids, commonly employed in industrial, agricultural, and marine settings. Designed with a semi-rotary mechanism, it features a handle that moves back and forth through a 180-degree arc, creating a suction and discharge action to pump the fluid.

Specification

Model: RDDLZ-SRHP-YL1
Dive Mode: Manual Semi Rotary
Port Size: G3/4 inch Thread
Suction Capacity: 5m
Lift Capacity: 14m
Flow Rate: 20 L/min
Material: Cast Iron

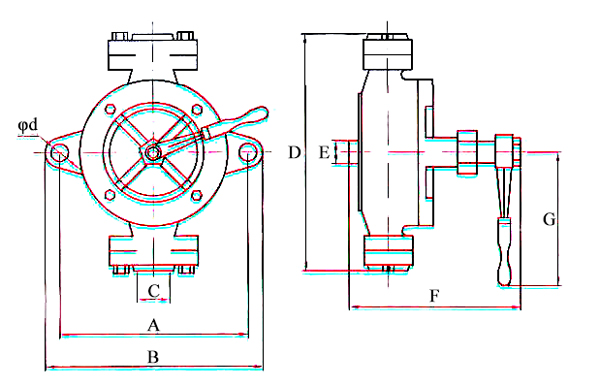

Dimension (Unit: mm)

A	B	C	D	E	F	G	φd
115	140	G3/4 inch	205	φ35	175	290	φ10

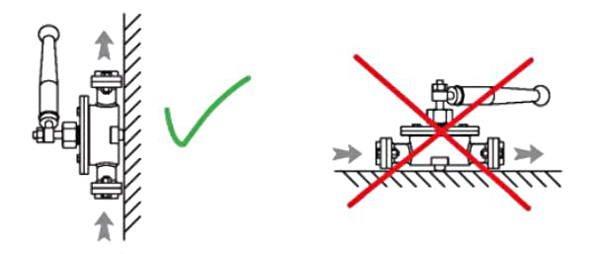

Installation

How to Use

Tips: Can semi rotary hand pump be used in high temperature environments?

Semi rotary hand pumps typically have temperature limitations due to their construction materials and seals. Many are designed for use within a moderate temperature range, often up to 60-80°C (140-176°F). In high-temperature environments exceeding these limits, the pump's performance and longevity may be compromised. Seals and lubricants can degrade faster, leading to potential leaks or failures.
