- Stock: In Stock
- Model: RDDLZ-SRHP-YL2
- Weight: 1.00
- SKU: RDDLZ-SRHP-YL2

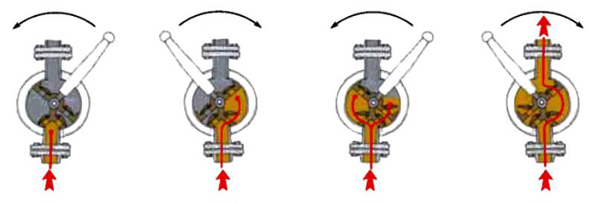

Semi rotary hand pump is a manually operated device used to transfer liquids, commonly employed in industrial, agricultural, and marine settings. Designed with a semi-rotary mechanism, it features a handle that moves back and forth through a 180-degree arc, creating a suction and discharge action to pump the fluid.
Specification
- Model: RDDLZ-SRHP-YL2
- Dive Mode: Manual Semi Rotary
- Port Size: G1 inch Thread
- Suction Capacity: 6m
- Lift Capacity: 26m
- Flow Rate: 25 L/min
- Material: Cast Iron

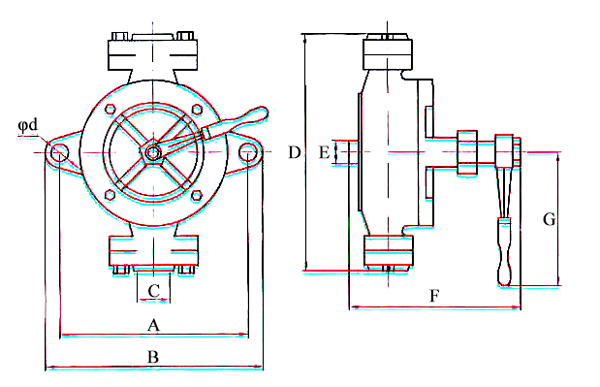

Dimension (Unit: mm)
| A | B | C | D | E | F | G | φd |
| 135 | 165 | G1 inch | 245 | φ39 | 200 | 340 | φ11 |
Installation
How to Use
Tips: What is a semi rotary hand pump?
A semi-rotary hand pump is a manually operated pump used to transfer fluids such as water, oil, or diesel. It features a handle that moves in a semi-circular motion, typically around 180 degrees, which drives the pump mechanism. This action creates suction to draw fluid into the pump chamber and then expels it through the outlet. Semi-rotary hand pumps are often constructed from durable materials like cast iron or stainless steel to withstand various environmental conditions and fluid types.
These pumps are commonly used in applications where electric power is unavailable or impractical, such as in remote locations, agricultural settings, or during emergencies. They are appreciated for their simplicity, reliability, and ease of maintenance. The semi-rotary hand pump's design makes it efficient for transferring moderate volumes of fluid with minimal effort, making it a practical choice for various fluid handling tasks.
