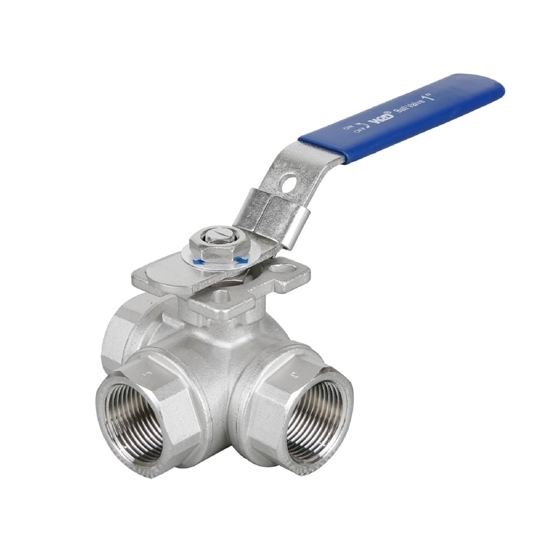

1 Inch Stainless Steel 3 Way Ball Valve, T Port/L Port

0 reviews • Write a review

from

$80.14

Ex Tax: $80.14

Stock: In Stock
Model: RDDLZ-3WBV-25
Weight: 1.00
SKU: RDDLZ-3WBV-25

Available Options

Short Description

Material

Thread

Port

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This ball valve cannot be used for drinking water.

L port/T port 3 way ball valve for sale online. It is a reliable 1" (DN25) stainless steel ball valve with three thread ends (BSP, BSPT and NPT), used in chemical and petrochemical processing to control the flow of chemicals and other fluids.

Specifications

Model: RDDLZ-Q14/15F-63/1000WOG(C/P/R)
Size: 1 inch (25mm)
Connection Method: Thread
Threaded Ends: BSP, BSPT, NPT
Port: T Port/L Port
Mounting Pad: ISO5211
Working Pressure: 1.6MPa
Temperature Range: -20℃～180℃
Weight: About 1.225kg (T), 1.24kg (L)
Material: 304/316 Stainless Steel

Dimension (Unit: mm)

DN	D	L±1.5	L1	H	T	C	NM	ISO5211
25	18	98	72	79	167	11	4.5	F04/F05

Main Part Materials

NO.	PART NAME	MATERIAL	QTY
1	CAP	CF8/CF8M	3
2	SEAT	PTFE/RPTFE	4
3	JOINT GASKET	PTFE/RPTFE	3
4	THRUST WASHER	PTFE/RPTFE	1
5	PACKING	PTFE/RPTFE	1
6	STEM	S304/S316	1
7	GLAND	SS304	1
8	NUT	SS304	2
9	BALL	S304/S316	1
10	BODY	CF8/CF8M	1
11	HANDLE	S304	1
12	HANDLE COVER	PVC	1
13	LOCK	SS304	1

Applications

3-way ball valves are used in a wide range of industries, including oil and gas, chemical processing, HVAC, and water treatment. They are suitable for applications where precise control of fluid or gas flow is required, and where the ability to divert or mix the flow is important.

Tips: 3 Way Ball Valve vs. 3 Piece Ball Valve

A 3 way ball valve and a 3-piece ball valve are both types of ball valves, but they differ in terms of design, construction, and application. Here are some of the key differences between the two:

Design: A 3 way ball valve has three ports, which can be used to control the flow of fluids in different directions. In contrast, a 3-piece ball valve has two ports, which can be used to control the flow of fluids in one direction.
Construction: A three-way ball valve is typically constructed as a single unit, with a single body and a single ball. In contrast, a 3-piece ball valve is constructed from three separate pieces: the body, the ball, and the end caps.
Application: Three-way ball valves are commonly used in applications where multiple flow paths need to be controlled, such as in mixing or diverting applications. 3-piece ball valves, on the other hand, are commonly used in applications where flow needs to be shut off completely, such as in isolation or block valve applications.
