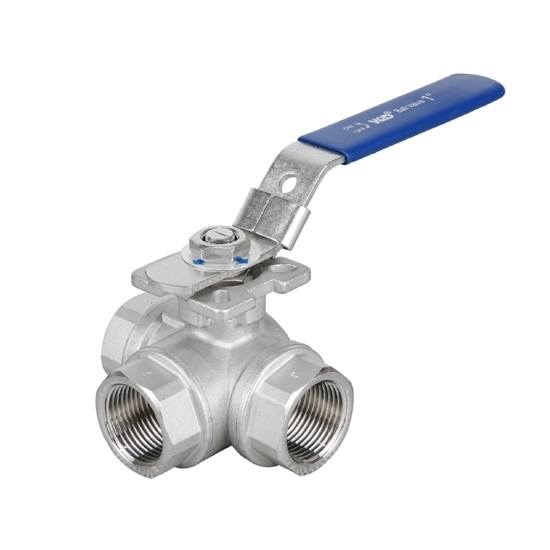

3 Inch Stainless Steel 3 Way Ball Valve, T Port/L Port

0 reviews • Write a review

from

$448.82

Ex Tax: $448.82

Stock: In Stock
Model: RDDLZ-3WBV-80
Weight: 1.00
SKU: RDDLZ-3WBV-80

Available Options

Short Description

Thread

Port

Material (T Port)

Material (L Port)

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

80mm (3 inch) stainless steel three way ball valve comes with L port/T port, BSP/BSPT/NPT thread standard and SS 304/316 material, designed for the oil and gas industry to control oil, gas and flow of other fluids.

Specifications

Model: RDDLZ-Q14/15F-63/1000WOG(C/P/R)
Size: 3 inch (80mm)
Connection Method: Thread
Threaded Ends: BSP, BSPT, NPT
Port: T Port/L Port
Mounting Pad: ISO5211
Working Pressure: 1.6MPa
Temperature Range: -20℃～180℃
Weight: About 9.67kg (T), 9.97kg (L)
Material: 304/316 Stainless Steel

Dimension (Unit: mm)

DN	D	L±1.5	L1	H	T	C	NM	ISO5211
80	64	199	163	150	272	17	58	F07/F10

Main Part Materials

NO.	PART NAME	MATERIAL	QTY
1	CAP	CF8/CF8M	3
2	SEAT	PTFE/RPTFE	4
3	JOINT GASKET	PTFE/RPTFE	3
4	THRUST WASHER	PTFE/RPTFE	1
5	PACKING	PTFE/RPTFE	1
6	STEM	S304/S316	1
7	GLAND	SS304	1
8	NUT	SS304	2
9	BALL	S304/S316	1
10	BODY	CF8/CF8M	1
11	HANDLE	S304	1
12	HANDLE COVER	PVC	1
13	LOCK	SS304	1

Applications

3-way ball valves are used in a wide range of industries, including oil and gas, chemical processing, HVAC, and water treatment. They are suitable for applications where precise control of fluid or gas flow is required, and where the ability to divert or mix the flow is important.

Tips: Types of Ball Valves

Full port ball valve: This type of valve has a larger ball and port size, allowing for unrestricted flow through the valve.
Reduced port ball valve: A reduced port ball valve has a smaller ball and port size, which reduces flow capacity but also reduces the cost of the valve.
V port ball valve: This type of valve has a V-shaped ball and a corresponding V-shaped seat, which provides precise flow control and can handle high-pressure and high-temperature applications.
Trunnion ball valve: A trunnion ball valve has additional support at the bottom of the ball, which makes it suitable for higher pressure and larger-size applications.
Floating ball valve: A floating ball valve has a ball that is free to move and is held in place by the pressure of the fluid or gas passing through the valve.
Three-way ball valve: This type of valve has three ports, allowing for multiple flow directions and functions.
Cryogenic ball valve: A cryogenic ball valve is designed to operate at extremely low temperatures and is commonly used in the storage and transport of liquefied gases.
High-pressure ball valve: A high-pressure ball valve is designed to handle high-pressure applications, typically above 1000 psi.
