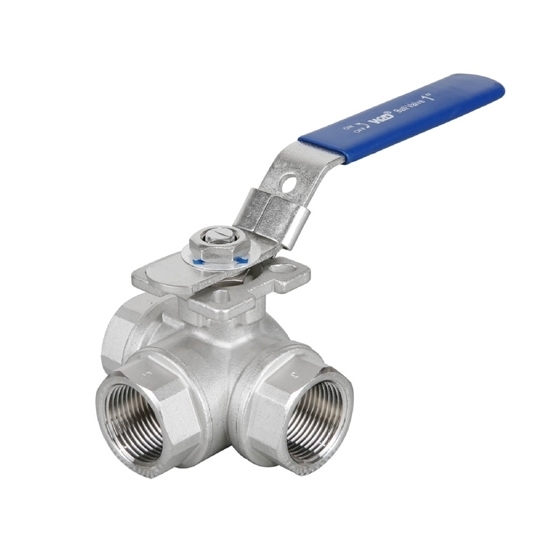

1-1/4 Inch Stainless Steel 3 Way Ball Valve, T Port/L Port

0 reviews • Write a review

from

$105.29

Ex Tax: $105.29

Stock: In Stock
Model: RDDLZ-3WBV-32
Weight: 1.00
SKU: RDDLZ-3WBV-32

Available Options

Short Description

Material

Thread

Port

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This ball valve cannot be used for drinking water.

High quality 1-1/4 inch (DN32) stainless steel 3 way ball valve is designed to control the flow of fluids or gases in piping or process systems. L type/T type valve, BSP/BSPT/NPT thread standard, SS 304/316 material, low cost, durable, good price.

Specifications

Model: RDDLZ-Q14/15F-63/1000WOG(C/P/R)
Size: 1-1/4 inch (32mm)
Connection Method: Thread
Threaded Ends: BSP, BSPT, NPT
Port: T Port/L Port
Mounting Pad: ISO5211
Working Pressure: 1.6MPa
Temperature Range: -20℃～180℃
Weight: About 2.215kg (T), 2.255kg (L)
Material: 304/316 Stainless Steel

Dimension (Unit: mm)

DN	D	L±1.5	L1	H	T	C	NM	ISO5211
32		98	72	79	167	11	11.5	F04/F05

Main Part Materials

NO.	PART NAME	MATERIAL	QTY
1	CAP	CF8/CF8M	3
2	SEAT	PTFE/RPTFE	4
3	JOINT GASKET	PTFE/RPTFE	3
4	THRUST WASHER	PTFE/RPTFE	1
5	PACKING	PTFE/RPTFE	1
6	STEM	S304/S316	1
7	GLAND	SS304	1
8	NUT	SS304	2
9	BALL	S304/S316	1
10	BODY	CF8/CF8M	1
11	HANDLE	S304	1
12	HANDLE COVER	PVC	1
13	LOCK	SS304	1

Applications

3-way ball valves are used in a wide range of industries, including oil and gas, chemical processing, HVAC, and water treatment. They are suitable for applications where precise control of fluid or gas flow is required, and where the ability to divert or mix the flow is important.

Tips: Advantages of a 3 way ball valve

Multiple flow configurations: 3 way ball valve allows for multiple flow configurations, which can be used to divert or mix fluids in different ways. This makes them ideal for use in a variety of industrial and commercial applications where precise flow control is required.
Compact design: Three way ball valves have a compact design, which makes them easy to install and use in tight spaces. They are often used in applications where space is limited, such as in pipelines or offshore drilling platforms.
High flow capacity: 3 way ball valves have a high flow capacity, which makes them ideal for use in applications where large volumes of fluids need to be transported or processed quickly.
Low torque operation: Three-way ball valves typically require low torque to operate, which makes them easier to operate manually or with automated control systems.
Durable and reliable: Three-way ball valves are typically constructed from high-quality materials, such as stainless steel, which makes them durable and reliable. They are resistant to corrosion and can withstand high temperatures and pressures, making them suitable for use in harsh environments.
