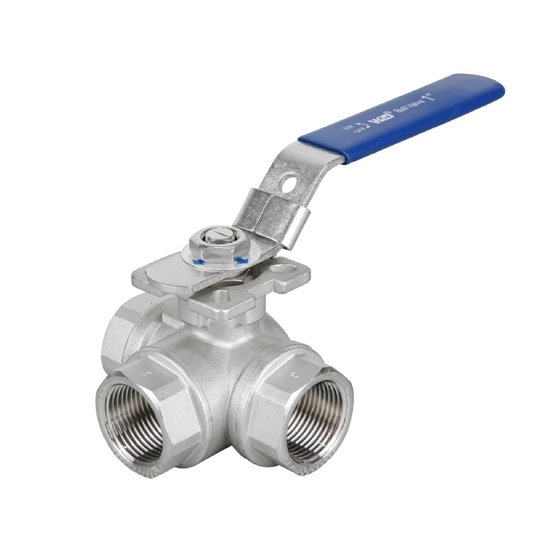

1/2 Inch Stainless Steel 3 Way Ball Valve, T Port/L Port

0 reviews • Write a review

from

$66.61

Ex Tax: $66.61

Stock: In Stock
Model: RDDLZ-3WBV-15
Weight: 1.00
SKU: RDDLZ-3WBV-15

Available Options

Short Description

Material

Thread

Port

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This ball valve cannot be used for drinking water.

1/2 inch (DN15) stainless steel three way ball valve can provide L port and T port, BSP, BSPT and NPT thread standard and SS 304/316 material, ideal for chemical, petrochemical, oil, gas and HVAC industry.

Specifications

Model: RDDLZ-Q14/15F-63/1000WOG(C/P/R)
Size: 1/2 inch (15mm)
Connection Method: Thread
Threaded Ends: BSP, BSPT, NPT
Port: T Port/L Port
Mounting Pad: ISO5211
Working Pressure: 1.6MPa
Temperature Range: -20℃～180℃
Weight: About 0.57kg
Material: 304/316 Stainless Steel

Dimension (Unit: mm)

DN	D	L±1.5	L1	H	T	C	NM	ISO5211
15	12	72	55	65	131	9	1.6	F03/F04

Main Part Materials

NO.	PART NAME	MATERIAL	QTY
1	CAP	CF8/CF8M	3
2	SEAT	PTFE/RPTFE	4
3	JOINT GASKET	PTFE/RPTFE	3
4	THRUST WASHER	PTFE/RPTFE	1
5	PACKING	PTFE/RPTFE	1
6	STEM	S304/S316	1
7	GLAND	SS304	1
8	NUT	SS304	2
9	BALL	S304/S316	1
10	BODY	CF8/CF8M	1
11	HANDLE	S304	1
12	HANDLE COVER	PVC	1
13	LOCK	SS304	1

Applications

3-way ball valves are used in a wide range of industries, including oil and gas, chemical processing, HVAC, and water treatment. They are suitable for applications where precise control of fluid or gas flow is required, and where the ability to divert or mix the flow is important.

Tips: What is a 3 way ball valve?

A 3-way ball valve is a type of valve that has three ports, an inlet port, an outlet port, and a third port that can be used to divert or mix the flow of fluid or gas. The valve's body has a hollow ball with a hole through its center, which can be rotated to control the flow of media through the valve. The ball has a bore that is lined with a sealing material such as PTFE, which provides a tight seal when the valve is closed. The valve can be actuated manually, electrically, or pneumatically to control the flow of media.

There are two common configurations of 3-way ball valves: T-port and L-port. In a T-port configuration, the ball has a "T" shaped bore, which allows flow between the inlet port and either the outlet port or the third port. In an L-port configuration, the ball has an "L" shaped bore, which allows flow between the inlet port and either the outlet port or the third port, as well as between the outlet port and the third port.

3-way ball valves are used in a wide range of industries, including oil and gas, chemical processing, HVAC, and water treatment. They are often used in applications where precise control of fluid or gas flow is required, and where the ability to divert or mix the flow is important.
