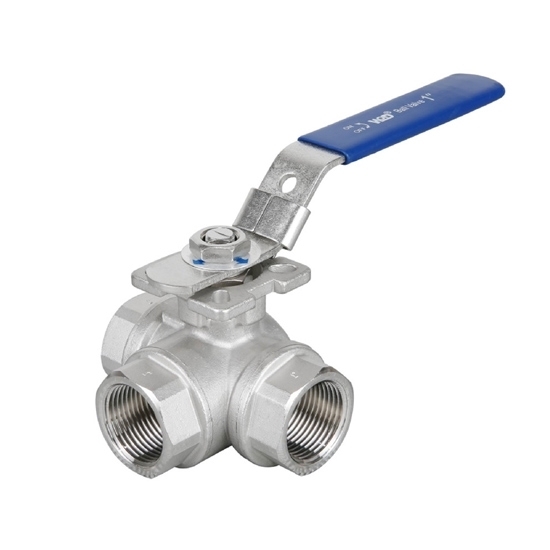

1.5 Inch Stainless Steel 3 Way Ball Valve, T Port/L Port

0 reviews • Write a review

from

$146.91

Ex Tax: $146.91

Stock: In Stock
Model: RDDLZ-3WBV-40
Weight: 1.00
SKU: RDDLZ-3WBV-40

Available Options

Short Description

Material

Thread

Port

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This ball valve cannot be used for drinking water.

Buy a three way ball valve from RDDLZ.com. This is a 1-1/2 inch (DN40) stainless steel ball valve, available with optional L port/T port, BSP/BSPT/NPT thread standard and SS 304/316 material, typically used in applications that require split or mixed fluid flow.

Specifications

Model: RDDLZ-Q14/15F-63/1000WOG(C/P/R)
Size: 1-1/2 inch (40mm)
Connection Method: Thread
Threaded Ends: BSP, BSPT, NPT
Port: T Port/L Port
Mounting Pad: ISO5211
Working Pressure: 1.6MPa
Temperature Range: -20℃～180℃
Weight: About 3.355kg (T), 3.435kg (L)
Material: 304/316 Stainless Steel

Dimension (Unit: mm)

DN	D	L±1.5	L1	H	T	C	NM	ISO5211
40	32	126	100	115	193	14	19	F05/F07

Main Part Materials

NO.	PART NAME	MATERIAL	QTY
1	CAP	CF8/CF8M	3
2	SEAT	PTFE/RPTFE	4
3	JOINT GASKET	PTFE/RPTFE	3
4	THRUST WASHER	PTFE/RPTFE	1
5	PACKING	PTFE/RPTFE	1
6	STEM	S304/S316	1
7	GLAND	SS304	1
8	NUT	SS304	2
9	BALL	S304/S316	1
10	BODY	CF8/CF8M	1
11	HANDLE	S304	1
12	HANDLE COVER	PVC	1
13	LOCK	SS304	1

Applications

3-way ball valves are used in a wide range of industries, including oil and gas, chemical processing, HVAC, and water treatment. They are suitable for applications where precise control of fluid or gas flow is required, and where the ability to divert or mix the flow is important.

Tips: What can a 3 way ball valve do?

3 way ball valve is a type of valve that has three ports and a ball-shaped internal mechanism that controls the flow of fluid or gas through the valve. Here are some things that a three-way ball valve can do:

Control fluid or gas flow: The primary function of a three-way ball valve is to control the flow of fluids or gases through the valve. With its three ports, it can be used to direct flow in multiple directions or to mix or divert different flows.
Isolate or shut off flow: A three-way ball valve can be used to isolate or shut off flow in one or more directions, depending on its configuration. This makes it a versatile valve for use in a variety of industrial and commercial applications.
Regulate pressure or temperature: Three-way ball valves can be used to regulate pressure or temperature within a system, depending on their design and configuration. They can be used to regulate the flow of fluids or gases to achieve a desired pressure or temperature range.
Provide remote or automated control: Three-way ball valves can be operated manually or with remote or automated control systems, making them ideal for use in applications where precision control is required.
