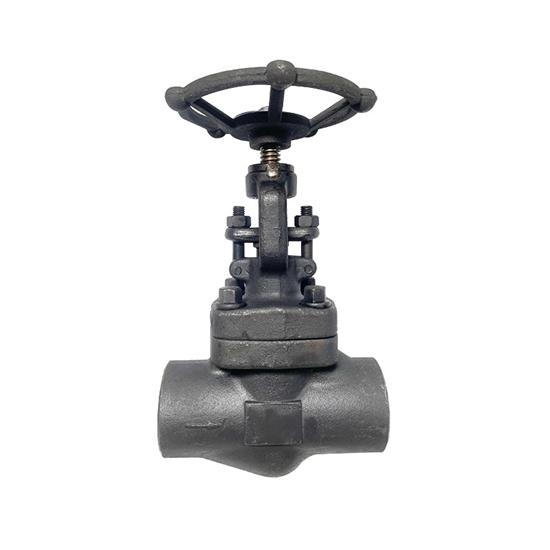

2" Forged Steel Globe Valve

2" Forged Steel Globe Valve
2" Forged Steel Globe Valve
0 reviews • Write a review
from
$231.45
Ex Tax: $231.45
  • Stock: In Stock
  • Model: RDDLZ-FSGV-DN50
  • Weight: 1.00
  • SKU: RDDLZ-FSGV-DN50

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This globe valve cannot be used for drinking water.

One notable feature of 2 inch forged globe valves is their ability to handle a wide range of flow rates, from low to high, making them versatile in different applications. Their robust construction and versatility make them well-suited for challenging environments, ensuring reliable and efficient operation in various industrial processes.

Features:

  • Forged Body. The body of the valve is forged, making it robust and suitable for high-pressure and high-temperature applications.
  • Pressure Seal Bonnet. Some forged steel globe valves feature a pressure seal bonnet, which is designed to enhance the sealing capabilities of the valve under high-pressure conditions.
  • Socket Weld. Forged steel globe valves may have either socket weld for easy installation and connection with the pipeline.

Specification:

  • Model: RDDLZ-J61H-DN50
  • Port Size: 2 inch (DN50)
  • Texture of Material: forged steel
  • Pressure Rating: 1.6 MPa
  • Rotation Mode: hand wheel
  • Connection Mode: welding
  • Flow direction: one-way
  • Medium: steam
  • Net Weight: 2.8kg

Dimension (Unit: mm)

DNLBDHW
5023016160321240


Application:

Tips: How should a globe valve be installed?

  • Choose the correct size and type of valve based on the application.
  • Ensure proper alignment with the pipeline, considering flow direction.
  • Install the valve with the arrow on the body indicating the correct flow direction.
  • Use appropriate gaskets and ensure a tight seal between flanges.
  • Tighten bolts evenly to avoid misalignment and leakage.
  • Support the valve to prevent excessive strain on the pipeline.
  • Install the valve in a location easily accessible for maintenance.
  • Conduct pressure tests to ensure integrity and functionality.
