Note: This globe valve cannot be used for drinking water.

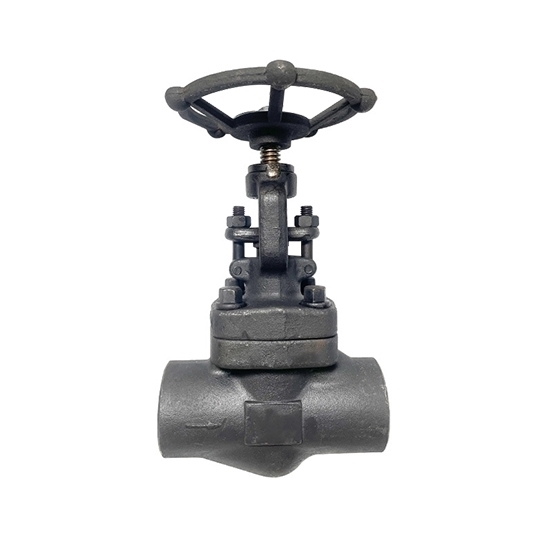

These globe valves are often preferred in critical systems where precise flow control is essential. Their design allows for throttling and regulating fluid flow, making them suitable for applications requiring fine-tuned control of processes.

Features:

• Forged Body. The body of the valve is forged, making it robust and suitable for high-pressure and high-temperature applications.
• Pressure Seal Bonnet. Some forged steel globe valves feature a pressure seal bonnet, which is designed to enhance the sealing capabilities of the valve under high-pressure conditions.
• Socket Weld. Forged steel globe valves may have either socket weld for easy installation and connection with the pipeline.

Specification:

• Model: RDDLZ-J61H-DN40
• Port Size: 1-1/2 inch (DN40)
• Texture of Material: forged steel
• Pressure: 1.6 MPa
• Rotation Mode: hand wheel
• Connection Mode: welding
• Flow direction: one-way
• Medium: steam
• Net Weight: 2.5kg

Dimension (Unit: mm)

Application:

Tips: Are forged globe valves suitable for corrosive environments?

Forged globe valves can be suitable for corrosive environments depending on the material of construction. Typically, these valves are made from materials such as stainless steel, alloy steel, or other corrosion-resistant alloys, making them well-suited for challenging conditions. The forging process enhances the material's strength and durability, making forged globe valves resistant to corrosion and erosion. It's essential to select the appropriate alloy based on the specific corrosive elements present in the environment. Additionally, factors such as proper sealing, trim material, and valve design should be considered to ensure optimal performance and longevity in corrosive conditions. Regular maintenance and monitoring are crucial to extend the lifespan of forged globe valves in corrosive environments.
