Note: This globe valve cannot be used for drinking water.

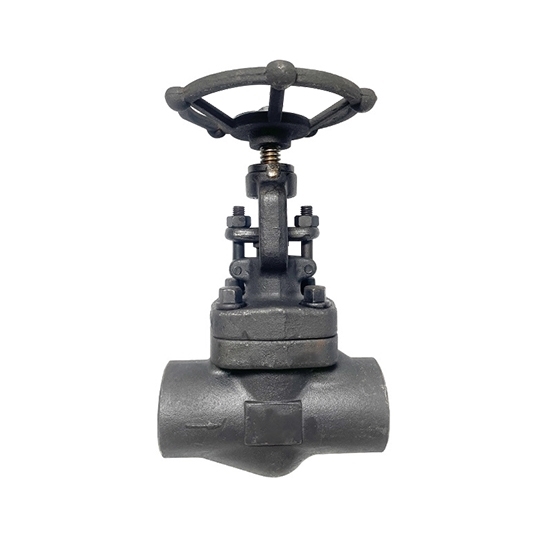

A 1/2 inch forged steel globe valve is a type of industrial valve designed for regulating the flow of fluids in pipelines. Constructed using forged steel for enhanced durability and strength.

Features:

• Forged Body. The body of the valve is forged, making it robust and suitable for high-pressure and high-temperature applications.
• Pressure Seal Bonnet. Some forged steel globe valves feature a pressure seal bonnet, which is designed to enhance the sealing capabilities of the valve under high-pressure conditions.
• Socket Weld. Forged steel globe valves may have either socket weld for easy installation and connection with the pipeline.

Specification:

• Model: RDDLZ-J61H-DN15
• Port Size: 1/2 inch (DN15)
• Texture of Material: forged steel
• Pressure: 1.6 MPa
• Rotation Mode: hand wheel
• Connection Mode: welding
• Flow direction: one-way
• Medium: steam
• Net Weight: 1.5kg

Dimension (Unit: mm)

Application:

Tips: Is a gate valve better than a globe valve?

The choice between a gate valve and a globe valve depends on the specific application and requirements. Gate valves are typically better suited for on/off service in pipelines, providing low fluid resistance when fully open. They are cost-effective and work well in applications where a tight seal is crucial. However, gate valves may not be ideal for throttling or regulating flow due to their design.

On the other hand, globe valves are versatile and offer precise control of flow rates, making them suitable for throttling applications. They provide a higher level of accuracy in controlling fluid flow but may introduce more resistance when fully open compared to gate valves. Selecting the better valve depends on factors such as the intended use, system requirements, and cost considerations, with each valve type having its own advantages and limitations.
