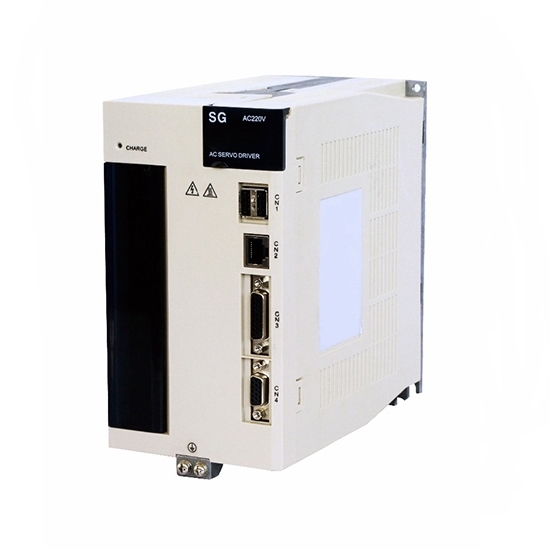

AC Servo Drive For 2kW-5.5kW Servo Motor

0 reviews • Write a review

from

$689.23

Ex Tax: $689.23

Stock: In Stock
Model: RDDLZ-AS755500
Weight: 1.00
SKU: RDDLZ-AS755500

Available Options

Short Description

Input Signal

Current

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

This provided servo motor drive is 2000W to 5.5kW output power, single-axis control, 50A/75A current rating, three phase 220V AC voltage, 2500 lines incremental encoder or 17/23 bit absolute encoder of feedback, is commonly paired with 2kW to 5.5kW RDDLZ servo motor.

Servo Drive Specification

Model		RDDLZ-SG-AS755500 (Click it to see more specifications)
Matching Servo Motor Model		RDDLZ-SERVO-180S2500 (2.5 kW servo motor)
Manual		Servo Drive product Manual Servo Drive User Manual
Output Power		2000W-5.5kW
Voltage		Three phase 220V AC
Input Signal Type*		Pulse + analog (±10V) signal or pulse signal (Optional)
Current		50A/70A
Control Mode		Position control, Speed control, JOG operation
Encoder Feedback		2500 lines incremental encoder
		17/23 bit absolute encoder
Structure		Base-mounted type
Weight		3.5 Kg
Application		for 2000W-5.5kW AC servo motor
Operate Temperature		0℃~+50℃
Humidity		<90% (no frost)

Note: Our AC Servo Drive will come with a RS485 control software, so you can only monitor the motor parameters through 485 communication, but you cannot use it to control the motor.

Servo Drive Terminal Details

NO.	Name	Description
1	Front Cover	--
2	Nameplate	Indicates the SERVOPACK model and rating.
3	Input Voltage	--
4	Charge	Lights up when the main circuit power is turned on. Note: Even if you turn OFF the main circuit power supply,this indicator will be lighting as long as the internal capacitor remains charged. Do not touch the main circuit or motor terminals while this indicator is lighting. Doing so may result in electric shocks.
5	Main Circuit Terminals	The terminals depend on the main circuit power supply input specifications of the SERVOPACK.
6	Servo Motor Terminals (U,V,W)	The connection terminals for the servo motor main circuit cable (power line).
7	Ground Terminal	The ground terminals to prevent electric shock. Always connect this terminal.
8	485 Communication Connector (CN1,CN2)	--
9	I/O Signal Connector (CN3)	Connect to reference input signals and sequence I/O signals.
10	Encoder Connector (CN4)	Rotary servo motor: Connect to the encoder in the servo motor. Linear servo motor: Connect to a serial converter unit or linear encoder.
11	Panel Display	Used to display SERVOPACK status, alarm numbers, and parameters.
12	Panel Operation keys	Used to set parameters.
13	Panel Operator	--

Servo Drive Dimension

Tips:

Before the servo motor running, parameters should be adjust to match the appliance. If parameters setting not the correct value, it could result in equipment uncontrolled or malfunction.
Don't touch any rotating motor parts during it running, otherwise hurt would happen.
Highly recommended: In order to avoid danger happening, please firstly, do test the servo motor whether it can work normally or not in unload state, then connect load to servo motor.
Don't touch the radiator of servo motor when it is working, or scald would be caused due to high temperature.
