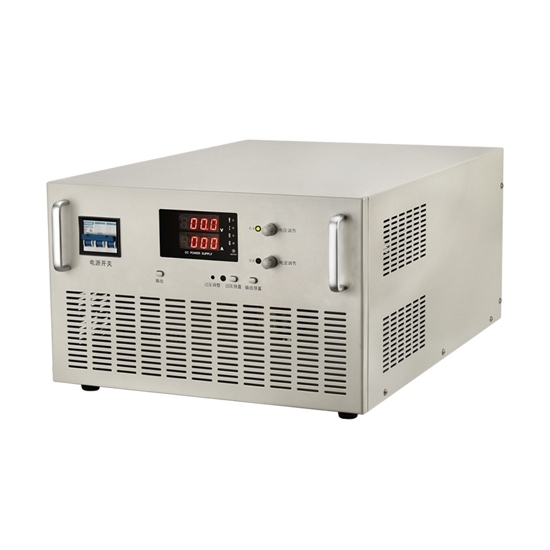

150A 120V 18000W Variable DC Power Supply

Free Shipping

150A 120V 18000W Variable DC Power Supply

0 reviews • Write a review

from

$6,587.49

Ex Tax: $6,587.49

Stock: In Stock
Model: RDDLZ-VDCPS120150K
Weight: 1.00
SKU: RDDLZ-VDCPS120150K

Available Options

Short Description

Input Voltage

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

150A 120V variable DC power supply provides a reliable and adjustable power source for various applications. This variable DC power supply with adjustable voltage and current capabilities, coupled with digital control features, serves as a reliable and efficient power source for electronics experimentation and development.

Specification

Model	RDDLZ-JK120150K
Input Voltage	Single Phase 110V AC, Three Phase 220V or 380V AC (+/- 10%) (240V, 400V, 415V, 440V, 460V 480V can be customized)
Output Voltage Range	0-120V
Output Current Range	0-150A
Output Power	18000W
Frequency	50Hz/60Hz
Adjustable Mode	Pulse Width Modulation (PWM) Type
Transistor Connection Method	Full Bridge
Output Type	Dual
Display	3 digit
Display Accuracy	Output Voltage ±0.5%, Output Current ±0.5%
Efficiency	>86%
Load Regulation (CV)	Stable Voltage ≤0.5%, Constant Current ≤0.5%
Line Regulation (CV)	Stable Voltage ≤0.5%
Ripple Voltage	≤1%
Insulation Resistance	Input-Output: ≥20MΩ
	Input-Chassis: ≥20MΩ
	Output-Chassis:≥80MΩ
Dielectric Strength	Input-Output: AC1500V, 10mA, 1 minute
	Input-Chassis: AC1500V, 10mA, 1 minute
	Output-Chassis: AC1500V, 10mA, 1 minute
Protection	Over Load and Voltage Protection
Current Imbalance	≤5% + 0.5A
Operating Ambient	-10℃ to + 45℃/ 85%RH
Storage Ambient	-10℃ to + 80℃/ 80%RH
Overheat Protection Ambient Threshold	70℃ to 80℃
Mean Time Between Failures	≥50000h
Cooling Duct	Internal Cooling Air Duct Forward and Exit
Certification	CE, RoSH
Warranty	12 Months

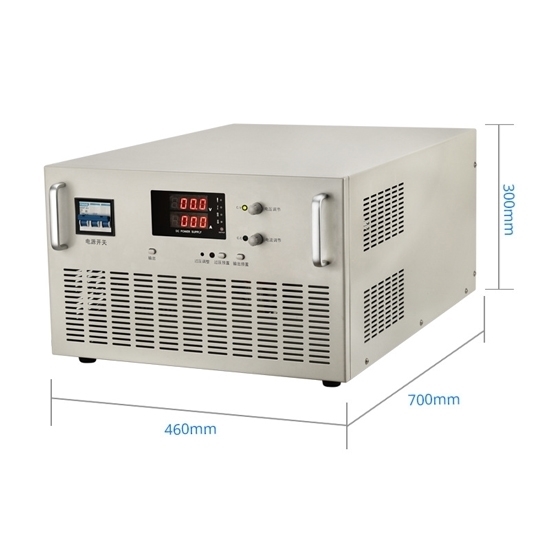

Size	700 (L) x 480 (W) x 295 (H) mm
Weight	45kg

Detail

Tips: What is the typical lifespan of a variable DC power supply?

The lifespan of a variable DC power supply depends on various factors, including its quality, usage patterns, and maintenance. Higher quality power supplies designed with durable components and robust construction can last for several decades with proper care. In contrast, lower-quality units may have shorter lifespans, potentially ranging from a few years to a decade. Regular maintenance, such as cleaning, ensuring proper ventilation, and monitoring for voltage irregularities, can extend the lifespan. Intermittent or heavy usage, especially near the power supply's maximum capacity, may accelerate wear and reduce its lifespan. Ultimately, a well-maintained, high-quality variable DC power supply can provide reliable service for 15-30 years, while lower-quality units may need replacement sooner. Regular assessments and adherence to manufacturer guidelines contribute to optimizing the lifespan of a variable DC power supply.
