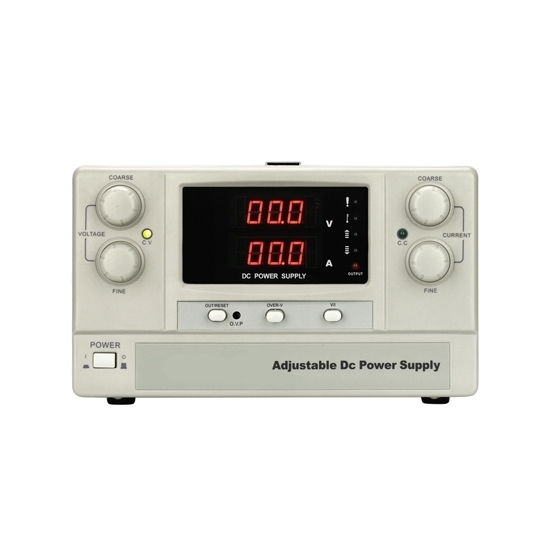

100A 15V 1500W Variable DC Power Supply

0 reviews • Write a review

from

$859.29

Ex Tax: $859.29

Stock: In Stock
Model: RDDLZ-VDCPS15100K
Weight: 1.00
SKU: RDDLZ-VDCPS15100K

Available Options

Short Description

Input Voltage

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

100A 15V variable DC power supply provides a reliable and adjustable power source for various applications. Whether in educational settings or professional labs, this variable DC power supply with adjustable voltage and current capabilities, coupled with digital control features, serves as a reliable and efficient power source for electronics experimentation and development.

Specification

Model	RDDLZ-JK15100K
Input Voltage	Single Phase 110V or 220V AC (+/- 10%)
Output Voltage Range	0-15V
Output Current Range	0-100A
Output Power	1500W
Frequency	50Hz/60Hz
Adjustable Mode	Pulse Width Modulation (PWM) Type
Transistor Connection Method	Full Bridge
Output Type	Dual
Display	3 digit
Display Accuracy	Output Voltage ±1.5%, Output Current ±2.0%
Efficiency	>86%
Load Regulation (CV)	Stable Voltage ≤1%, Constant Current ≤2%
Line Regulation (CV)	Stable Voltage ≤0.5%
Ripple Voltage	≤3%
Insulation Resistance	Input-Output: ≥20MΩ
	Input-Chassis: ≥20MΩ
	Output-Chassis:≥80MΩ
Dielectric Strength	Input-Output: AC1500V, 10mA, 1 minute
	Input-Chassis: AC1500V, 10mA, 1 minute
	Output-Chassis: AC1500V, 10mA, 1 minute
Protection	Over Load and Over Voltage Protection
Current Imbalance	≤5% + 0.5A
Operating Ambient	-10℃ to + 45℃/ 85%RH
Storage Ambient	-10℃ to + 80℃/ 80%RH
Overheat Protection Ambient Threshold	70℃ to 80℃
Mean Time Between Failures	≥50000h
Cooling Duct	Internal Cooling Air Duct Forward and Exit
Certification	CE, RoSH
Warranty	12 Months

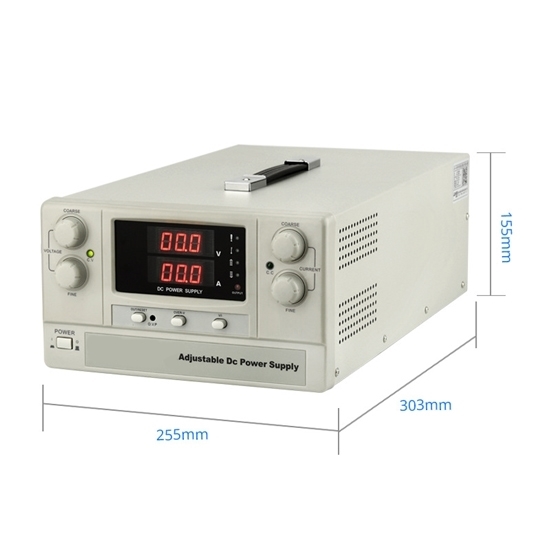

Size	303 (L) x 255 (W) x 155 (H) mm
Weight	8kg

Detail

Tips: What is a variable DC power supply?

A variable DC power supply is an electronic device that provides a controllable and adjustable output voltage for powering electronic circuits and devices. Unlike fixed power supplies, a variable DC power supply allows users to manually adjust the output voltage within a specified range to meet the requirements of different electronic components. It typically consists of a voltage regulator circuit that maintains a stable output voltage, and a control mechanism such as a potentiometer or digital interface for adjusting the voltage. This flexibility is crucial in electronics testing, prototyping, and development, as it enables users to supply the precise voltage needed for their specific applications. Variable DC power supplies find applications in laboratories, workshops, and educational settings where precise and adjustable power sources are essential for electronic experiments and troubleshooting.
