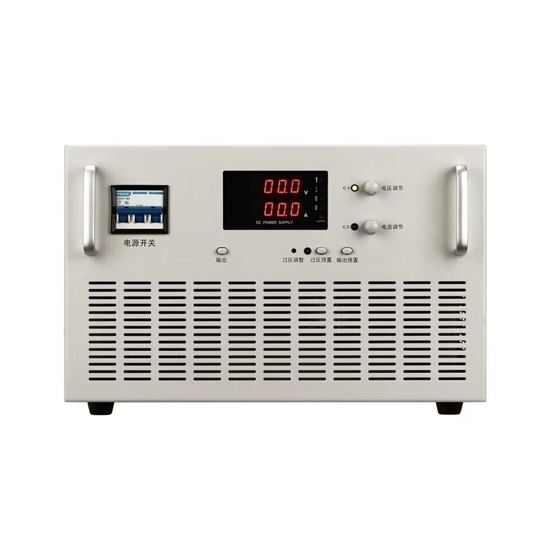

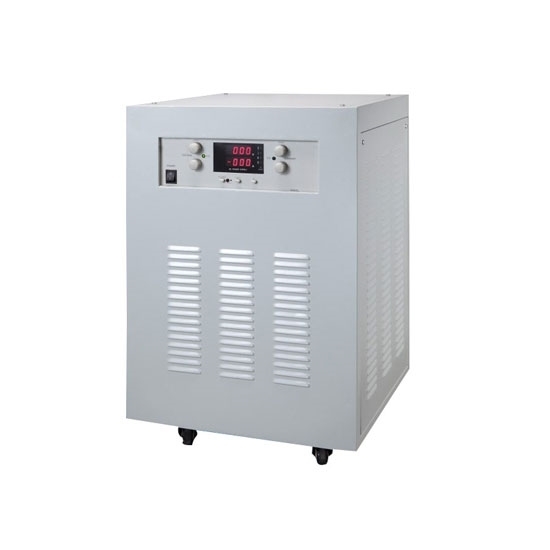

100A 100V 10000W Variable DC Power Supply

0 reviews • Write a review

from

$4,199.89

Ex Tax: $4,199.89

Stock: In Stock
Model: RDDLZ-VDCPS100100K
Weight: 1.00
SKU: RDDLZ-VDCPS100100K

Available Options

Input Voltage

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

100 amp 100 volt variable DC power supply features adjustable voltage and current outputs, allowing users to fine-tune settings based on specific requirements. The versatility and precision of this adjustable DC power supply make it an essential tool for electronics labs, testing environments, and various technical applications, offering reliability and adaptability in powering electronic components and systems.

Specification

Model	RDDLZ-JK100100K
Input Voltage	Single Phase 110V AC, Three Phase 220V or 380V AC (+/- 10%) (240V, 400V, 415V, 440V, 460V 480V can be customized)
Output Voltage Range	0-100V
Output Current Range	0-100A
Output Power	10000W
Frequency	50Hz/60Hz
Adjustable Mode	Pulse Width Modulation (PWM) Type
Transistor Connection Method	Full Bridge
Output Type	Dual
Display	3 digit
Display Accuracy	Output Voltage ±0.5%, Output Current ±0.5%
Efficiency	>86%
Load Regulation (CV)	Stable Voltage ≤0.5%, Constant Current ≤0.5%
Line Regulation (CV)	Stable Voltage ≤0.5%
Ripple Voltage	≤1%
Insulation Resistance	Input-Output: ≥20MΩ
	Input-Chassis: ≥20MΩ
	Output-Chassis:≥80MΩ
Dielectric Strength	Input-Output: AC1500V, 10mA, 1 minute
	Input-Chassis: AC1500V, 10mA, 1 minute
	Output-Chassis: AC1500V, 10mA, 1 minute
Protection	Over Load and Over Voltage Protection
Current Imbalance	≤5% + 0.5A
Operating Ambient	-10℃ to + 45℃/ 85%RH
Storage Ambient	-10℃ to + 80℃/ 80%RH
Overheat Protection Ambient Threshold	70℃ to 80℃
Mean Time Between Failures	≥50000h
Cooling Duct	Internal Cooling Air Duct Forward and Exit
Certification	CE, RoSH
Warranty	12 Months

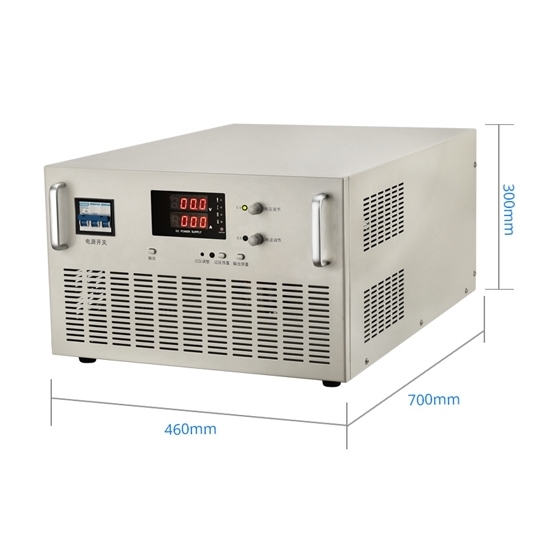

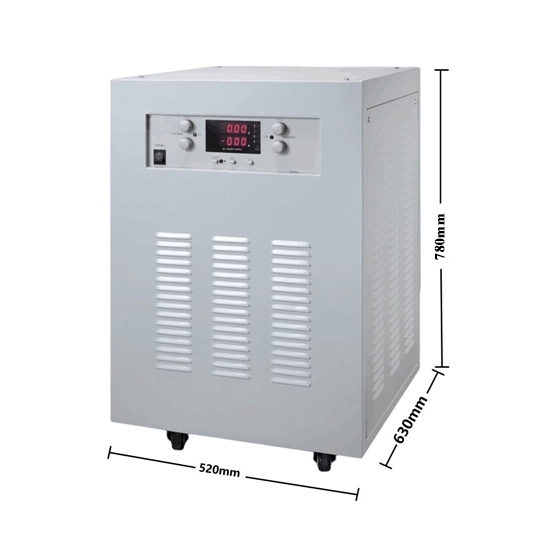

Size	700 (L) x 480 (W) x 295 (H) mm/ 630 (L) x 520 (W) x 780 (H) mm
Weight	45kg (220V)/63kg (110V)

Detail

Tips: Is there a minimum load requirement for variable DC power supplies?

Variable DC power supplies typically have a minimum load requirement to ensure stable operation and prevent voltage spikes. This requirement is often specified by the manufacturer and varies among different models. Below the minimum load, the power supply may experience issues such as voltage regulation problems, increased ripple, or even complete failure. This is because the control circuitry relies on a certain level of current flow to maintain stability. Users should consult the product's datasheet or manual to determine the specific minimum load requirements for their variable DC power supply. It's essential to adhere to these specifications to guarantee reliable and safe operation, avoiding potential damage to the power supply and the connected electronic components.
