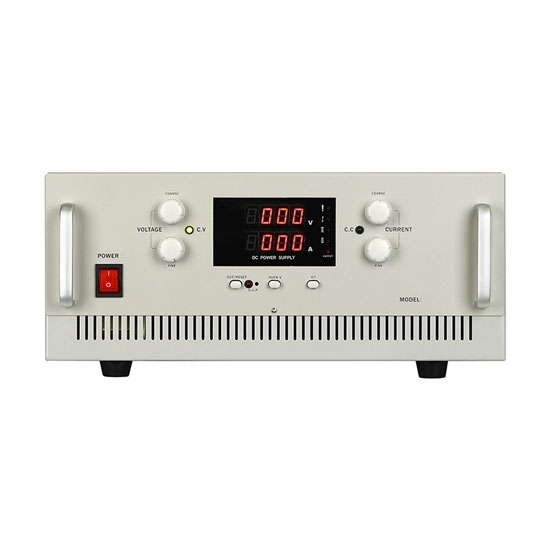

100A 60V 6000W Variable DC Power Supply

0 reviews • Write a review

from

$2,472.89

Ex Tax: $2,472.89

Stock: In Stock
Model: RDDLZ-VDCPS60100K
Weight: 1.00
SKU: RDDLZ-VDCPS60100K

Available Options

Short Description

Input Voltage

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

100 amp 60 volt variable DC power supply features adjustable voltage and current outputs, allowing users to fine-tune settings based on specific requirements. The versatility and precision of this adjustable DC power supply make it an essential tool for electronics labs, testing environments, and various technical applications, offering reliability and adaptability in powering electronic components and systems.

Specification

Model	RDDLZ-JK60100K
Input Voltage	Single Phase 110V or 220V AC (+/- 10%)
Output Voltage Range	0-60V
Output Current Range	0-100A
Output Power	6000W
Frequency	50Hz/60Hz
Adjustable Mode	Pulse Width Modulation (PWM) Type
Transistor Connection Method	Full Bridge
Output Type	Dual
Display	3 digit
Display Accuracy	Output Voltage ±0.5%, Output Current ±0.5%
Efficiency	>86%
Load Regulation (CV)	Stable Voltage ≤0.5%, Constant Current ≤0.5%
Line Regulation (CV)	Stable Voltage ≤0.5%
Ripple Voltage	≤1%
Insulation Resistance	Input-Output: ≥20MΩ
	Input-Chassis: ≥20MΩ
	Output-Chassis:≥80MΩ
Dielectric Strength	Input-Output: AC1500V, 10mA, 1 minute
	Input-Chassis: AC1500V, 10mA, 1 minute
	Output-Chassis: AC1500V, 10mA, 1 minute
Protection	Over Load and Over Voltage Protection
Current Imbalance	≤5% + 0.5A
Operating Ambient	-10℃ to + 45℃/ 85%RH
Storage Ambient	-10℃ to + 80℃/ 80%RH
Overheat Protection Ambient Threshold	70℃ to 80℃
Mean Time Between Failures	≥50000h
Cooling Duct	Internal Cooling Air Duct Forward and Exit
Certification	CE, RoSH
Warranty	12 Months

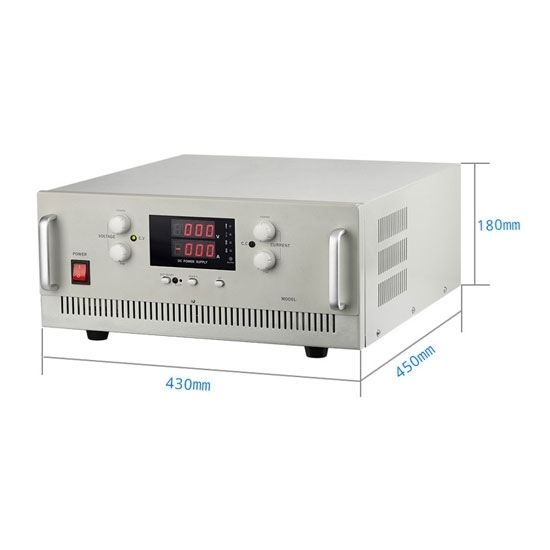

Size	430 (L) x 450 (W) x 180 (H) mm
Weight	45kg

Detail

Tips: How is voltage adjusted on a variable DC power supply?

Voltage on a variable DC power supply is typically adjusted using a potentiometer or a digital control mechanism. A potentiometer, often labeled as a voltage control knob, allows the user to manually vary the output voltage by rotating the knob, changing the resistance in the circuit. As the resistance changes, the voltage across the load is adjusted accordingly. In digital power supplies, voltage adjustment is achieved through electronic control circuits that regulate the output voltage based on user input. Users can set the desired voltage through a digital interface, and the control circuit adjusts the power supply's output accordingly. This digital approach offers precision and often includes additional features like over-voltage protection and current limiting for enhanced control and safety.
