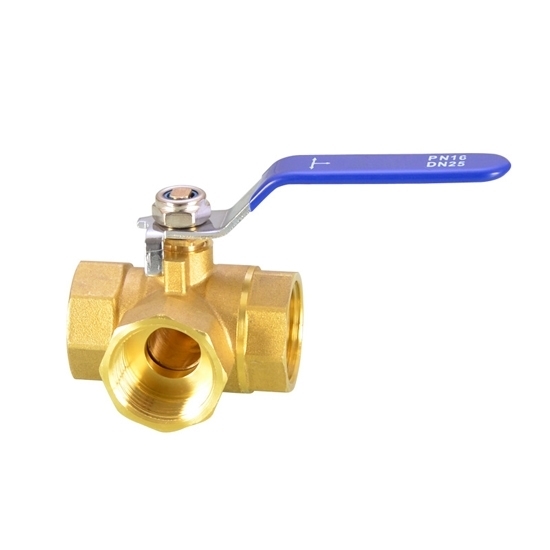

3/4" Brass Ball Valve, 3 Way

0 reviews • Write a review

from

$88.49

Ex Tax: $88.49

Stock: In Stock
Model: RDDLZ-BBVH-DN20
Weight: 1.00
SKU: RDDLZ-BBVH-DN20

Available Options

Short Description

Flow Type

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note:

Unsalable status.
This brass ball valve can not be used for drinking water.

This manual brass ball valve is made of high-quality brass forging to prevent leakage. This T type or L type brass ball valve is convenient for water, air and other flow control.

Specification

Model: RDDLZ-FE-3-14(T)/RDDLZ-FE-4-5(L)
Size: 3/4 inch (DN20)
Flow Type (Optional): T Type or L Type
Body Material: Brass
Handle Material: Iron
Nominal Pressure: PN16
Working Media: Water, Air, Oil, Gas, Natural Gas, Liquefied Gas

Dimension (Unit: mm)

T Type

L Type

Tips: How to disassemble a brass ball valve?

Put the brass ball valve in the half-open position, flush and remove the possible dangerous substances inside and outside the valve body. Close the ball valve, remove the connecting bolts and nuts on both flanges and then completely remove the valve from the pipeline. Disassemble the drive device in sequence - actuator, connecting bracket, lock washer, stem nut, butterfly shrapnel, glam, wear-resistant sheet, and stem packing. Remove the body cover connecting bolts and nuts, separate the bonnet from the body, and remove the bonnet gasket. Make sure the ball is in the "closed" position, which will allow it to be easily removed from the body and then the seat. Gently push the valve stem downward from the hole in the valve body until it is completely removed, and then take out the O-ring and the packing under the valve stem.
